Custom PTFE Packing Solutions from Trusted China Manufacturers for Bulk Wholesale

Understanding PTFE Packing: A Comprehensive Guide

In the demanding world of industrial sealing, where reliability and chemical resistance are paramount, PTFE Packing stands as a superior solution. Also known as Teflon packing, it is engineered from Polytetrafluoroethylene, a high-performance fluoropolymer renowned for its exceptional inertness and durability. At Kaxite, we specialize in manufacturing premium-grade PTFE packing that meets the rigorous standards of modern applications, from chemical processing and pharmaceutical manufacturing to food and beverage production. Our packing materials are designed to provide a leak-free seal in pumps, valves, and agitators, even in the most aggressive service environments involving strong acids, alkalis, and solvents. This guide delves into the technical specifications, benefits, and common applications of Kaxite PTFE packing, providing the detailed information engineers and procurement specialists need to make an informed decision.

Key Product Parameters and Specifications of Kaxite PTFE Packing

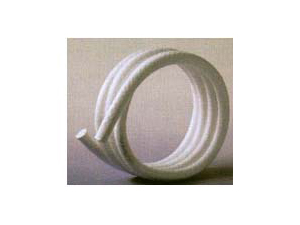

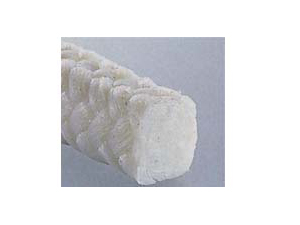

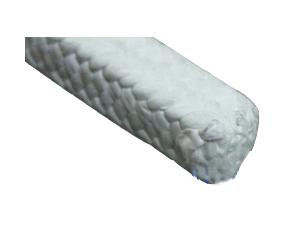

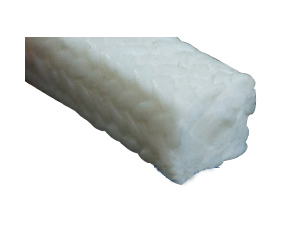

Selecting the correct packing requires a clear understanding of its physical and mechanical properties. Kaxite PTFE packing is available in various forms—braided, twisted, filament, and tape—each tailored for specific operational needs. Below are the critical parameters that define our product's performance.

Material Composition & Properties

• Base Material: 100% Virgin PTFE or compounded with lubricants/media for enhanced performance.
• Temperature Range: -450°F to +500°F (-268°C to +260°C) continuously, with short-term peaks up to 550°F (288°C).
• pH Range: 0-14, offering universal chemical compatibility.
• Tensile Strength: Excellent, maintaining integrity under dynamic and static loads.
• Friction Coefficient: Extremely low (typically ~0.05-0.1), reducing shaft/rod wear and power consumption.
• Thermal Conductivity: Low, providing good thermal insulation properties.
• Dielectric Strength: High, making it an excellent electrical insulator.

Standard Specifications & Available Forms

Kaxite PTFE packing is manufactured to precise dimensions and can be customized. Common specifications include:

Performance Advantages of Kaxite PTFE Packing

The superiority of Kaxite PTFE packing is rooted in the unique properties of the PTFE polymer, which we optimize through advanced manufacturing techniques.

• Unmatched Chemical Resistance: PTFE is virtually inert, resisting attack from nearly all industrial chemicals, including strong acids like sulfuric and hydrochloric, strong bases, halogens, and organic solvents. This makes Kaxite packing ideal for sealing aggressive media.
• Wide Temperature Tolerance: It performs reliably across a vast temperature spectrum, from cryogenic applications to high-heat processes, without becoming brittle or degrading.
• Excellent Non-Stick & Low Friction Properties: The inherent slipperiness of PTFE minimizes adhesion of process media and drastically reduces friction against the shaft or stem. This leads to less wear on equipment components, lower torque requirements, and extended packing life.
• Zero Contamination: PTFE is FDA-compliant and USP Class VI rated, making Kaxite packing perfectly suited for sanitary applications in food, beverage, and pharmaceutical industries where product purity is critical.
• Long Service Life & Reduced Maintenance: Due to its resistance to chemical degradation, thermal stress, and wear, our PTFE packing requires less frequent adjustment and replacement, lowering total cost of ownership and minimizing downtime.
• Flexibility & Conformability: Kaxite's braided and filament styles easily conform to the sealing surface, ensuring a tight seal even on slightly worn equipment.

Frequently Asked Questions (FAQ) About PTFE Packing

General & Application Questions

Q: What is the main difference between PTFE packing and traditional graphite or aramid fiber packing?

A: The primary differences lie in chemical resistance and temperature range. Traditional graphite packing excels in very high-temperature steam services but can be oxidized. Aramid fibers offer high tensile strength but degrade in certain chemicals. PTFE packing from Kaxite provides the broadest chemical compatibility and a wide, stable temperature range, making it the universal choice for corrosive and sanitary applications where contamination must be avoided.

Q: Can Kaxite PTFE packing be used in high-speed centrifugal pumps?

A: Yes, specifically our filament (or gland) style PTFE packing is engineered for high-speed rotary applications. Its construction provides excellent heat dissipation and maintains its structural integrity under centrifugal forces, offering reliable sealing with minimal shaft wear. Proper gland adjustment and cooling are always recommended for optimal performance.

Q: Is PTFE packing suitable for abrasive slurry services?

A: Pure PTFE has limited abrasion resistance. For abrasive slurries, Kaxite offers compounded PTFE packing that is infused with inert lubricants or media designed to withstand abrasive particles. It is crucial to consult with our technical team to select the correct compounded grade for your specific slurry characteristics.

Installation & Maintenance Questions

Q: What is the proper procedure for installing PTFE packing rings?

A: Correct installation is key. Ensure the shaft/stem and stuffing box are clean and free of damage. Cut the packing rings squarely using a sharp knife or a mandrel tool—never wrap and cut on the shaft. Stagger the ring joints by 90 degrees on successive rings. Insert each ring individually, using a split bushing or tamping tool to seat it firmly. Follow the manufacturer's torque specifications for the gland follower, initially leaving it slightly loose to allow for a break-in period, then tightening gradually after the pump or valve has been operated.

Q: How often should PTFE packing be adjusted or re-tightened?

A: Kaxite PTFE packing typically has a longer adjustment interval than traditional packings due to its low creep and excellent resilience. After the initial break-in (approximately 24 hours of operation), a slight re-tightening may be needed. Subsequently, under normal conditions, it may only require checking every few months. The best indicator is a slight, controlled leakage for cooling; excessive leakage or no leakage at all suggests adjustment is needed.

Q: Does PTFE packing require a break-in period?

A: Yes, a controlled break-in period is essential. After installation, the equipment should be run at low pressure and speed if possible, allowing the packing to heat up, soften slightly, and mold itself to the geometry of the shaft and stuffing box. This process forms an effective seal. The gland should be adjusted during this period to maintain a slight drip for lubrication and cooling until the packing has fully seated.

Material & Brand-Specific Questions

Q: What does "Virgin PTFE" mean, and why is it important for Kaxite products?

A: "Virgin PTFE" refers to polytetrafluoroethylene resin that has not been previously processed or recycled. Kaxite uses high-quality virgin PTFE to ensure consistent purity, performance, and mechanical properties. Recycled PTFE can contain impurities or have degraded polymer chains, leading to potential variability in chemical resistance, sealing ability, and service life. For critical applications, virgin material is the recommended choice.

Q: Can Kaxite provide PTFE packing for FDA-regulated or ultra-pure water applications?

A: Absolutely. Kaxite manufactures specific grades of PTFE packing that are compliant with FDA regulations 21 CFR 177.1550 for food contact and are suitable for USP Class VI applications. For ultra-pure water (UPW) or deionized water systems, we offer specially cleaned and packaged packing to prevent any ionic or particulate contamination of the high-purity fluid stream.

Q: How does Kaxite ensure the quality and consistency of its PTFE packing?

A: Kaxite implements a rigorous quality management system throughout the manufacturing process. We start with certified raw materials, employ precision braiding and processing equipment, and conduct batch testing for key parameters like density, chemical analysis, and dimensional accuracy. Our technical data sheets provide guaranteed specifications, ensuring you receive a reliable product that performs as expected every time.

Typical Industrial Applications

Kaxite PTFE packing is deployed across a diverse range of industries due to its versatile properties.

• Chemical & Petrochemical Processing: Sealing pumps and valves handling acids, caustics, chlorines, hydrocarbons, and solvents.
• Pharmaceutical & Biotechnology: Sanitary fittings, fermenters, and processing equipment where sterility and non-contamination are mandatory.
• Food & Beverage Production: Sealing in mixers, pumps, and valves for ingredients like juices, sauces, dairy products, and edible oils.
• Water & Wastewater Treatment: Valves and pumps for chemical dosing (chlorination, pH adjustment) and handling treated effluent.
• Pulp & Paper Industry: Equipment in bleaching stages and chemical recovery processes involving chlorides and peroxides.
• Power Generation: Sealing in chemical feed systems and auxiliary services within power plants.
