Custom Carbon Fiber Packing Solutions from a Leading Manufacturer in China

Introduction to Carbon Fiber Packing

In the demanding world of industrial sealing and fluid containment, the evolution of materials has been pivotal to enhancing performance, safety, and efficiency. Among the most significant advancements is the development and widespread adoption of carbon fiber packing. This engineered sealing solution represents a leap forward from traditional materials like aramid, PTFE, or graphite, offering unparalleled capabilities in extreme environments. At Kaxite, we have dedicated decades to perfecting the science behind high-performance sealing, establishing our carbon fiber packing as the benchmark for reliability in critical applications. This comprehensive guide delves into the technical specifications, operational benefits, and practical considerations of this superior material.

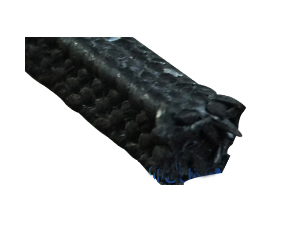

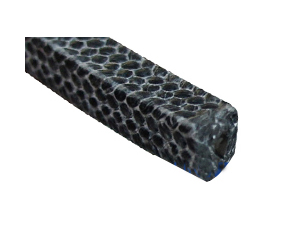

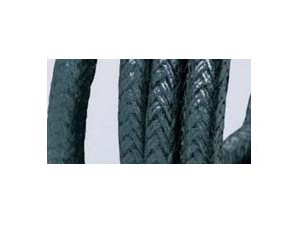

Carbon fiber packing is a braided sealing material primarily composed of high-strength, continuous carbon filaments. These filaments are typically impregnated with lubricants such as PTFE or specialized graphite to enhance self-lubricating properties and reduce friction. The core strength of carbon fiber packing lies in its unique molecular structure, which provides exceptional tensile strength, thermal conductivity, and chemical inertness. Unlike metallic packings, it is non-abrasive, protecting costly shaft and pump components from wear. Kaxite's manufacturing process involves precise control over fiber orientation, braid density, and impregnation levels, ensuring each ring delivers consistent, predictable performance from installation through its extended service life.

Technical Specifications and Product Parameters

Understanding the precise parameters of carbon fiber packing is essential for proper selection and application. The performance characteristics are dictated by the quality of the raw fibers, the braiding pattern, and the type of lubricant used. Below is a detailed breakdown of the key specifications that define Kaxite's premium carbon fiber packing.

Key Physical & Mechanical Properties

• Material Composition: High-modulus PAN-based carbon filaments, impregnated with high-purity PTFE dispersion and/or colloidal graphite.
• Density: 1.6 - 1.8 g/cm³, providing an optimal balance of strength and flexibility.
• Tensile Strength: Exceeds 3500 MPa, offering superior resistance to blow-out and extrusion under high pressure.
• Thermal Conductivity: 50 - 100 W/m·K (in-plane), facilitating efficient heat dissipation away from the shaft interface.
• Coefficient of Thermal Expansion: Very low, approximately 0.5 x 10⁻⁶ /K, ensuring dimensional stability across a wide temperature range.
• Compressibility & Recovery: Excellent recovery properties maintain a tight seal during pressure and temperature fluctuations.

Operational Performance Range

The following table outlines the standard operational limits for Kaxite's standard and high-grade carbon fiber packing series. These ranges are based on continuous duty in dynamic rotary and reciprocating shaft applications.

Standard Sizing and Packaging

• Cross-Section (Square): Available from 3mm (1/8") to 25mm (1").
• Spool Length: Standard 100-foot spools; custom lengths available.
• Pre-Formed Rings: Available in standard ANSI / DIN sizes, ready for installation.
• Die-Formed Sets: Custom ring sets for specific pump models, laser-measured for perfect fit.

Advantages of Kaxite Carbon Fiber Packing

The transition to carbon fiber packing is driven by its multifaceted advantages over traditional materials. Kaxite's formulation elevates these inherent benefits through proprietary manufacturing techniques.

• Exceptional Thermal Management: The high thermal conductivity of carbon fiber rapidly transfers frictional heat away from the shaft, preventing overheating, packing hardening, and shaft scoring. This property is critical in high-speed or dry-running scenarios.
• Superior Strength and Durability: With a strength-to-weight ratio far exceeding steel, Kaxite carbon fiber packing withstands extreme pressures without extruding into gland clearances. It exhibits minimal volumetric wear, leading to exceptionally long service intervals and reduced maintenance costs.
• Chemical Inertness: The carbon fiber itself is inert to a vast spectrum of chemicals, solvents, and hydrocarbons. Kaxite's selected impregnants (PTFE/graphite) further broaden this resistance, making it suitable for everything from strong acids and alkalis to volatile organic compounds.
• Reduced Friction and Energy Consumption: The self-lubricating nature of the impregnated fibers creates a low-friction interface against the shaft. This reduces torque requirements, lowers driving motor energy consumption by up to 15-20% compared to conventional packings, and minimizes shaft wear.
• Non-Abrasive to Shafts: Unlike some reinforced graphite or aramid styles, properly formulated carbon fiber packing is gentle on shaft and sleeve materials, including stainless steel, alloy steels, and ceramics, preserving the integrity of expensive rotating equipment.

Frequently Asked Questions (FAQ)

Q: What are the primary applications where carbon fiber packing is the best choice?

A: Carbon fiber packing is the preferred choice for severe-service applications involving a combination of high temperature, high pressure, aggressive chemicals, and high shaft speeds. Common applications include hot water and superheated water pumps, chemical process pumps handling acids and alkalis, refinery and petrochemical service (e.g., hydrocarbons, amines), mixers and agitators in abrasive slurries, and boiler feedwater pumps. Its non-contaminating properties also make it suitable for food and pharmaceutical industries where purity is paramount.

Q: How does Kaxite carbon fiber packing handle thermal cycling and steam service?

A: Kaxite's carbon fiber packing is engineered specifically for stability during thermal cycling. Its near-zero coefficient of thermal expansion prevents the packing from loosening during cool-down or over-tightening during heat-up, which can cause shaft binding or packing failure. In saturated and superheated steam service, our high-grade (KX-CF-2) packing, with its advanced graphite impregnation, performs exceptionally well. It maintains seal integrity, does not harden or bake, and provides reliable, low-emission sealing up to its rated temperature.

Q: What is the correct installation procedure for carbon fiber packing rings?

A: Correct installation is critical for performance. First, ensure the shaft/sleeve is clean, smooth, and within allowable runout tolerances. Cut packing rings using a sharp blade and a mandrel of the exact shaft diameter; cuts should be clean and at a 45-degree angle. Stagger the ring joints by 90 degrees around the shaft. Install each ring individually, using a split bushing to seat it firmly and squarely into the stuffing box. Tighten the gland follower evenly, hand-tight only for initial installation. After the pump is started, follow a controlled "run-in" procedure: allow slight leakage to cool the packing for 30-60 minutes, then gradually tighten the gland nuts in 1/6-turn increments until a minimal, controlled leak is achieved (typically 1-2 drops per minute).

Q: Can carbon fiber packing run dry, and what are its limitations?

A: While Kaxite carbon fiber packing has excellent dry-running capabilities compared to many other styles due to its impregnated lubricants, it is not classified as a completely dry-running packing like some pure graphite foils. Short-term dry running during start-up or upset conditions is generally tolerated. However, for prolonged dry-running applications, a dedicated dry-running design or a different sealing solution (like mechanical seals) should be considered. Continuous dry running can lead to accelerated wear of the packing's lubricant layer and increased friction.

Q: How do I select between Standard Grade (KX-CF-1) and High-Performance Grade (KX-CF-2)?

A: The selection depends on your specific service conditions. Use KX-CF-1 Standard Grade for most general to severe chemical services, hot water up to 280°C, and pressures up to 200 bar. It offers an outstanding balance of performance and value. Choose KX-CF-2 High-Performance Grade when facing extreme conditions: temperatures exceeding 280°C, pressures above 200 bar, highly aggressive oxidizing media, or critical applications where maximum reliability and the longest possible run life are required, regardless of cost. Kaxite's technical support team can provide a definitive recommendation based on your complete operating parameters.

Q: What maintenance practices extend the life of a carbon fiber packing set?

A: Proactive maintenance significantly extends service life. Regularly monitor the gland area for temperature and leakage. A slight, controlled leak is necessary for lubrication and cooling; attempting to achieve a "zero-leak" condition will overheat the packing. Re-tighten the gland nuts only when leakage increases beyond the desired rate, and always in small increments (1/12 to 1/6 of a turn). Never over-tighten. If the packing requires frequent re-tightening, it may be nearing the end of its life. Periodically check for shaft condition and stuffing box alignment, as misalignment is a major cause of premature packing failure. Following the equipment manufacturer's and Kaxite's run-in procedure after installation is the most important first step for long life.
