Braided packing is a fundamental sealing solution used across countless industrial applications to control fluid and gas leakage around rotating or reciprocating shafts. At Kaxite, with decades of engineering expertise, we specialize in manufacturing high-performance braided packing that delivers reliability, longevity, and efficiency for the most demanding operating conditions. Unlike generic seals, our packing is engineered with precision, using advanced materials and braiding techniques to create a robust seal that adapts to system dynamics while minimizing shaft wear and maintenance downtime.
A key advantage of Kaxite's braided packing is its versatility. It is not a one-size-fits-all product; rather, it's a tailored solution. The effectiveness of a packing set depends on a perfect match between its material composition, construction style, and the specific service conditions—including media type, pressure, temperature, shaft speed, and pH levels. Selecting the wrong packing can lead to premature failure, excessive leakage, and costly damage to equipment. This guide provides a detailed overview of our product parameters, technical specifications, and application knowledge to help you make the optimal selection for your system.
### Core Materials and Their Properties
The material is the heart of any braided packing. Kaxite utilizes a range of advanced fibers and lubricants, each offering distinct advantages. Below is a breakdown of our primary material categories.
**Common Braided Packing Materials:**
| Material Type | Key Components | Max Temp (°C/°F) | pH Range | Key Features | Typical Applications |
| :--- | :--- | :--- | :--- | :--- | :--- |

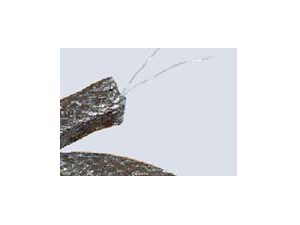

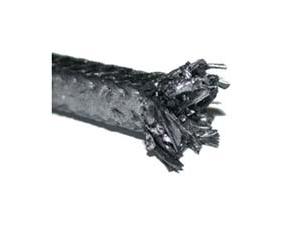

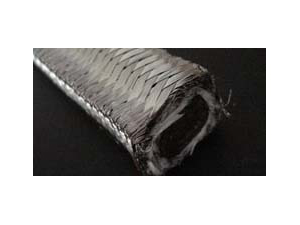

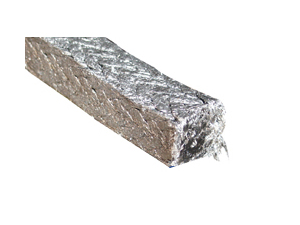

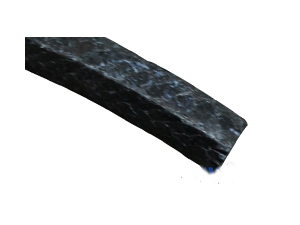

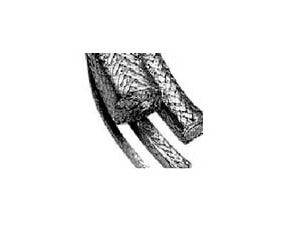

| **Graphite Filament** | Reinforced graphite filaments, sometimes with Inconel wire | 500°C / 932°F (in air) | 0-14 | Excellent thermal conductivity, self-lubricating, chemical inertness. | High-temperature valves, pumps, expanders, aggressive chemical services. |
| **Aramid Fiber** | Synthetic aramid fibers (e.g., Kevlar®) | 290°C / 554°F | 2-12 | High tensile strength, excellent abrasion resistance, non-conductive. | Rotary pumps, mixers, paper stock, water treatment, moderate temperatures. |
| **PTFE (Teflon)** | 100% PTFE fibers or with lubricants | 260°C / 500°F | 0-14 | Outstanding chemical resistance, very low friction, FDA compliant options. | Chemical processing, food & beverage, pharmaceutical, corrosive media. |
| **Carbon Fiber** | PAN or pitch-based carbon fibers | 350°C / 662°F (non-oxidizing) | 0-14 (varies) | High strength-to-weight ratio, good thermal stability, conductive. | High-speed pumps, automotive, aerospace, hot water and steam. |
| **Glass Fiber** | E-glass or silica fibers with PTFE | 260°C / 500°F | 2-11 (varies) | Good thermal & chemical resistance, economical. | Hot water, mild chemicals, general industrial services. |
| **Natural Fibers** | Flax, jute, or cotton with lubricants | 100°C / 212°F | 6-8 | Soft, conformable, excellent for water and low-pressure steam. | General water pumps, low-pressure valves, cold water services. |
**Lubrication and Impregnation:**
To reduce friction and heat generation, braided packing is often impregnated with lubricants. Kaxite packings may include:
* **PTFE Dispersions:** For universal chemical resistance and low friction.
* **Silicone Greases:** For high-temperature stability.
* **Graphite Powder:** A superior dry lubricant for extreme temperatures.
* **Molybdenum Disulfide (Moly):** Another high-performance solid lubricant.
* **Food-Grade Oils & Waxes:** For USDA/FDA compliant applications.
### Construction and Braiding Styles
The way the yarns are braided significantly impacts performance characteristics like density, flexibility, and extrusion resistance. Kaxite employs several advanced braiding techniques:
**1. Square Braid (Regular Braid):**
* **Description:** The most common and economical style. Yarns are braided over and under in a regular pattern, creating a square or rectangular cross-section.
* **Characteristics:** Good general flexibility, easy to install, suitable for standard applications.
* **Best For:** General service pumps, valves, and mixers with consistent shaft movement.

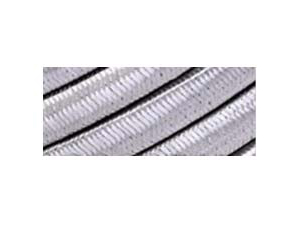

**2. Interlock Braid:**
* **Description:** Features a core of braided yarns surrounded by a tightly braided outer jacket. The core and jacket are "interlocked" during the braiding process.
* **Characteristics:** Higher density, superior extrusion resistance, excellent for high-pressure and high-speed applications. Maintains structural integrity better than square braid.
* **Best For:** High-pressure pumps, agitators, and severe service conditions.
**3. Twisted (Plied) & Braided-over-Core:**
* **Description:** Twisted yarns are braided together, or the packing is braided around a central core material. This creates a very dense, robust structure.
* **Characteristics:** Maximum density and volume stability, minimal radial expansion, ideal for containing volatile or expensive fluids.
* **Best For:** Control valves, barrier services, and applications requiring minimal product loss.
### Detailed Product Parameter List
When specifying Kaxite braided packing, consider this comprehensive list of parameters. Our technical datasheets provide exact values for each product code.
**Physical & Mechanical Parameters:**
* **Cross-Sectional Size:** Available in standard imperial (1/8", 1/4", 3/8", 1/2", 5/8", 3/4") and metric sizes. Custom sizes available.
* **Density:** Measured in g/cm³ or lbs/ft³. Higher density packings resist compression set and extrusion.
* **Tensile Strength:** The maximum stress the packing can withstand while being stretched (measured in MPa or psi).
* **Compressibility:** The percentage reduction in cross-sectional height under a specified load. Affects sealing force.
* **Recovery:** The ability to return to its original shape after compression is released. Good recovery accommodates shaft runout.
* **Coefficient of Friction:** A measure of sliding friction against the shaft. Lower values reduce heat and power consumption.
**Thermal & Chemical Parameters:**
* **Temperature Range:** Minimum and maximum continuous operating temperatures for both media and atmosphere.
* **Thermal Conductivity:** Ability to transfer heat away from the shaft interface (important for high-speed apps).
* **Linear Expansion Coefficient:** How much the packing expands or contracts with temperature changes.
* **Chemical Compatibility:** Detailed resistance charts are provided for hundreds of media (acids, bases, solvents, gases).
**Performance & Application Parameters:**
* **PV Limit:** The product of sealing pressure (P) and shaft surface speed (V). A key limiting factor for dynamic applications.
* **Shaft Speed:** Maximum recommended surface speed (in ft/min or m/s).
* **Pressure Rating:** Maximum sealing pressure capability (in psi or bar).
* **pH Suitability:** The acceptable acidity/alkalinity range of the sealed medium.
### Kaxite Braided Packing: Frequently Asked Questions (FAQ)
**Q: How do I select the right braided packing material for my application?**
**A:** Selection requires analyzing five key factors: 1) **Media:** Identify the chemical composition, abrasiveness, and value (e.g., expensive catalyst vs. water). 2) **Temperature:** Both media and ambient temperature. 3) **Pressure:** System operating pressure and potential pressure surges. 4) **Shaft Speed:** Surface speed of the rotating or reciprocating shaft. 5) **Equipment Type:** Pump (centrifugal, reciprocating), valve, mixer, etc. Cross-reference these conditions with the material property tables above. For complex applications, consult directly with a Kaxite technical specialist who can recommend a specific grade.
**Q: What is the correct procedure for installing braided packing?**
**A:** Proper installation is critical. First, ensure the stuffing box, shaft, and sleeve are clean, smooth, and free of damage. Cut packing rings using a sharp knife on a mandrel or the shaft itself, ensuring clean, square ends. Stagger the ring joints by 90 degrees (or at least 120 degrees) around the shaft. Use a split bushing or proper tamping tool to seat each ring gently but firmly—avoid using excessive force or sharp tools that can damage the fibers. Follow the manufacturer's torque specifications for gland follower nuts. For pump packing, a slight leakage (40-60 drops per minute) is often recommended during initial run-in to lubricate and cool the packing set.
**Q: Why is my new braided packing leaking excessively or overheating immediately after installation?**
**A:** Immediate failure usually points to installation error or selection mismatch. Common causes include: incorrect packing size, damaged rings during cutting/installation, failure to stagger joints, over-tightening the gland (which creates excessive friction and heat), or selecting a packing material incompatible with the service temperature or speed. Under-tightening can also cause initial leakage. Always follow the run-in procedure, which involves incremental tightening over several hours of operation.
**Q: Can Kaxite braided packing be used in food, pharmaceutical, or potable water applications?**
**A:** Yes, absolutely. Kaxite manufactures a dedicated line of braided packing compliant with FDA 21 CFR, USDA, and other global food-contact regulations (e.g., EU 10/2011). These packings are made from approved materials like pure PTFE, specific aramids, and food-grade lubricants. They are produced in a controlled environment to prevent contamination. Always specify the need for FDA/USDA compliance when ordering.
**Q: What is the difference between "die-formed" and "braided" packing, and when should I use each?**
**A:** Braided packing, as described here, is mechanically woven from yarns, offering flexibility, resilience, and adaptability to varying conditions. Die-formed (or molded) packing is pressed into shape under high heat and pressure, creating a very precise, dense ring with consistent dimensions. Braided is generally preferred for dynamic applications (rotating/reciprocating shafts) due to its flexibility and ability to dissipate heat. Die-formed is often used in static gasketing or in control valves where exact dimensions and minimal deformation are required. Kaxite produces both types and can advise on the best choice.
**Q: How does braided packing compare to mechanical seals?**
**A:** Both are effective sealing solutions with different profiles. Braided packing is generally more cost-effective initially and is easily adjustable or repairable in the field without disassembling equipment. It can tolerate more shaft movement and misalignment. Modern, high-quality packing like that from Kaxite offers very long service life and low leakage rates. Mechanical seals typically offer near-zero leakage (emission control) and require less maintenance but have a higher upfront cost and require precise installation. The choice depends on environmental regulations, maintenance philosophy, process fluid value, and equipment criticality. In many plants, they are used complementarily on different equipment.
