Custom Sealing Tools Manufacturer in China

Essential Sealing Solutions for Industrial Excellence

In the demanding world of industrial maintenance, pipeline integrity, and machinery operation, the reliability of connections is paramount. Leaks, drips, and failures in sealing systems are not merely inconveniences; they represent significant safety hazards, environmental risks, and costly downtime. This is where the selection of high-performance Sealing Tools and components becomes a critical decision for engineers, maintenance supervisors, and procurement specialists. The right sealing solution ensures operational continuity, protects valuable assets, and upholds stringent safety standards. For over two decades, Kaxite has been at the forefront of this field, engineering sealing tools that combine precision, durability, and innovative design to meet the toughest challenges across diverse sectors including oil & gas, chemical processing, water treatment, and manufacturing.

Kaxite's philosophy is built on a deep understanding of application stresses. We recognize that a one-size-fits-all approach is ineffective. Factors such as fluid media, pressure extremes, temperature cycles, chemical compatibility, and vibration all dictate the required specifications for an effective seal. Our product development is driven by this application-centric mindset, resulting in a comprehensive portfolio of sealing tools that offer reliable performance where it matters most. From advanced compression packing for pumps and valves to sophisticated mechanical seals and custom-molded gaskets, Kaxite provides the engineered solutions necessary to maintain a leak-free operation.

Core Product Categories & Technical Specifications

Kaxite's product range is meticulously categorized to address specific sealing functions. Below is an overview of our primary lines with their key technical parameters.

1. Mechanical Seals

Designed for rotating equipment like pumps, mixers, and agitators, Kaxite mechanical seals provide a superior alternative to traditional packing, offering near-zero leakage and reduced friction.

• Type: Cartridge, Component, Balanced, Unbalanced
• Primary Materials: Silicon Carbide, Tungsten Carbide, Alumina Ceramic, Carbon
• Secondary Seal Options: Viton O-rings, EPDM O-rings, PTFE Wedges
• Pressure Range: Up to 450 psi (31 bar) standard; high-pressure designs available
• Temperature Range: -40°F to 500°F (-40°C to 260°C)
• Speed: Suitable for shaft speeds up to 3600 RPM

2. Compression Packing

Ideal for valves, reciprocating pumps, and expansion joints, our braided and molded packing sets are engineered for longevity and easy installation.

3. Hydraulic & Pneumatic Seals

Kaxite seals for cylinders and actuators are designed for dynamic applications with high pressure and frequent cycling.

• Types: Piston Seals, Rod Seals, Wiper Scrapers, Wear Rings
• Elastomer Materials: Polyurethane (AU), Nitrile (NBR), Hydrogenated Nitrile (HNBR), Fluoroelastomer (FKM)
• Pressure Rating: Up to 10,000 psi (690 bar) for hydraulic systems
• Temperature Range: -65°F to 400°F (-54°C to 204°C) depending on compound
• Standard Profiles: U-cup, O-ring, Glyd Ring, Step Seal, Combined Seal

Frequently Asked Questions (FAQ) About Sealing Tools

Q: What is the primary difference between a gasket and a mechanical seal?
A: A gasket is a static sealing tool designed to fill the space between two or more mating surfaces, typically flanges, to prevent leakage under compression. It is used in non-moving applications. A mechanical seal is a dynamic sealing device used in rotating equipment like pump shafts to prevent fluid leakage from a high-pressure area to a low-pressure area. It consists of two flat faces (one rotating, one stationary) that run against each other, creating a tight seal.

Q: How often should compression packing be inspected and replaced?
A: Inspection intervals depend heavily on the service conditions—medium, temperature, pressure, and cycle frequency. As a general guideline, packing should be visually inspected for leakage and wear during routine maintenance shutdowns, typically every 3 to 6 months. Replacement is necessary when adjustable gland followers can no longer compensate for wear, leakage becomes excessive and unmanageable, or shaft sleeve scoring is evident. Kaxite high-performance packing often extends this service life significantly.

Q: Can I use the same sealing tool for water and aggressive chemicals?
A: Absolutely not. Chemical compatibility is the most critical factor in seal selection. A seal material suitable for water (like EPDM or certain nylons) may rapidly degrade, swell, or corrode when exposed to solvents, acids, or bases. Always consult the chemical resistance chart for the specific seal elastomer or material. Kaxite technical datasheets provide detailed compatibility guides, and our engineering team can advise on the optimal material—such as PTFE, FFKM, or specialized perfluoroelastomers—for harsh chemical services.

Q: What does "balanced" versus "unbalanced" mean in mechanical seals?
A: This refers to the hydraulic design of the seal faces. In an unbalanced mechanical seal, the entire hydraulic pressure in the seal chamber acts on the back of the rotating face, closing it against the stationary face. This works well for lower pressures. A balanced mechanical seal incorporates a step in the shaft or sleeve to reduce the hydraulic closing force on the faces. This design allows the seal to operate at much higher pressures with less face wear and heat generation, improving reliability and lifespan in demanding applications.

Q: Why is proper installation of sealing tools so crucial?
A: Even the highest-quality seal will fail prematurely if installed incorrectly. Proper installation ensures the sealing tool functions as engineered. Critical steps include cleaning all mating surfaces meticulously, lubricating seals as specified (using a compatible fluid), avoiding twists or cuts in elastomers, tightening gland bolts or followers in a crisscross pattern to even compression, and following precise torque specifications. Kaxite provides detailed installation manuals and, for complex mechanical seals, often offers cartridge designs that minimize installation errors.

Q: How does Kaxite ensure the quality and consistency of its sealing products?
A: Kaxite implements a rigorous Quality Management System certified to international standards. Our process begins with raw material verification from certified suppliers. During manufacturing, we utilize precision CNC machining, automated molding presses, and controlled braiding processes. Every production batch undergoes dimensional checks, and finished products are subject to performance sampling tests, including pressure, temperature, and friction analysis. This end-to-end control guarantees that every Kaxite seal meets the published specifications and delivers reliable performance.

Material Selection Guide for Optimal Performance

Choosing the correct material is not an option—it is a necessity. The table below summarizes key Kaxite sealing materials and their ideal service environments.

Installation Best Practices for Key Sealing Tools

To achieve the full service life potential of any seal, correct installation is non-negotiable. Here are focused guidelines for two common product categories.

Installing Compression Packing

1. Clean the Chamber: Remove all old packing, clean the stuffing box bore and shaft/sleeve with a non-abrasive tool. Inspect for scratches or wear.
2. Check the Shaft: Ensure the shaft or sleeve is smooth and within recommended runout tolerances. Replace if scored.

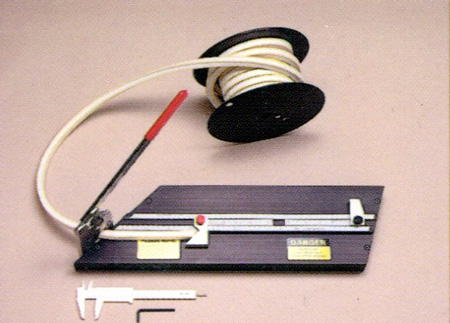

3. Cut Rings Correctly: Wrap the packing spool around a mandrel of the exact shaft diameter. Cut rings at a 45-degree angle (butt cut) or 90-degree angle (for graphite tape). Never cut around the shaft itself.

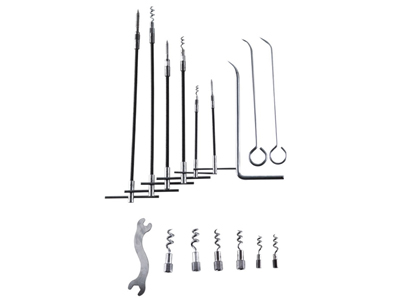

4. Stagger Joints: Install rings one at a time, using a split installation tool. Stagger the joints by at least 90 degrees with each subsequent ring.
5. Final Gland Adjustment: After installing all rings, tighten the gland follower evenly until slight resistance is felt. Start the equipment and allow the packing to run-in, then adjust the gland for a slight, controlled leakage (as required) for lubrication and cooling.

Installing Cartridge Mechanical Seals

1. Pre-Installation Check: Verify the seal type matches the pump model and operational conditions. Ensure the seal faces are clean and undamaged.
2. Shaft Preparation: Clean the shaft thoroughly. Remove any burrs that could damage the seal's secondary components.
3. Position the Cartridge: Slide the complete cartridge seal assembly onto the shaft. Do not remove the anti-rotation clip or shipping tabs yet.
4. Bolt to Housing: Mount the cartridge assembly to the pump housing using the provided bolts, tightening evenly.
5. Set the Seal Faces: Engage the drive mechanism (set screws, collars) as per the manual. Remove the anti-rotation clip and shipping tabs carefully. This action automatically sets the correct face compression without measurement.
6. Final Connection: Connect any external flush, quench, or barrier fluid piping as specified for the seal plan.
