China Manufacturer for Custom Double Jacketed Gaskets Machinery Solutions

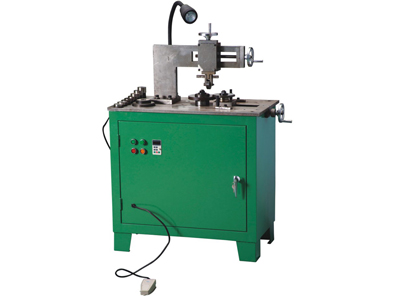

Introduction to the Machine for Double Jacketed Gaskets

In high-performance sealing systems, particularly within demanding industries such as chemical processing, pharmaceuticals, and food & beverage, the integrity of gaskets is paramount. A Machine for Double Jacketed Gaskets represents a pinnacle of precision engineering, designed to manufacture the critical sealing components that ensure leak-proof safety in pipelines and vessels handling extreme pressures, temperatures, and corrosive media. These are not standard gaskets; a double-jacketed gasket features a robust metal core (often stainless steel) encased within a sheath of soft, conformable sealing material like PTFE. This hybrid construction provides the structural strength of metal with the superior sealing capability of fluoropolymers, making them ideal for aggressive applications. The machinery that produces these specialized seals must, therefore, operate with exceptional accuracy, repeatability, and efficiency. At Kaxite, our decades of engineering excellence are embodied in our state-of-the-art automated production systems, setting the industry benchmark for quality and reliability in double-jacketed gasket fabrication.

Why a Dedicated Machine for Double Jacketed Gaskets is Essential

Producing a double-jacketed gasket manually or with generic equipment is fraught with inconsistencies that compromise seal performance. The process involves precise metal ring fabrication, meticulous wrapping or welding of the PTFE jacket, and often, the application of a secondary sealant or finishing. A dedicated Machine for Double Jacketed Gaskets automates and integrates these steps, delivering significant advantages:

• Unmatched Consistency: Automated control over pressure, temperature, and feed rates ensures every gasket produced has identical dimensions, jacket thickness, and sealing surface quality, eliminating human error.
• Enhanced Structural Integrity: The machine applies uniform tension and bonding pressure during the jacketing process, creating a flawless, bubble-free bond between the metal core and the PTFE layer. This prevents delamination under operational stress.
• Superior Material Utilization: Precision cutting and forming minimize material waste of expensive PTFE and metal alloys, optimizing production costs and supporting sustainable manufacturing practices.
• High-Volume Production Capacity: Kaxite machines are engineered for continuous, high-speed operation, meeting the large-scale demands of global industrial supply chains without sacrificing quality.
• Advanced Quality Control: Integrated laser measurement systems, vision inspection cameras, and pressure-testing modules can be incorporated to perform 100% in-line verification, guaranteeing that every gasket meets stringent ASME, DIN, or customer-specific standards.

Detailed Technical Specifications of Kaxite's Machine for Double Jacketed Gaskets

Kaxite's engineering philosophy centers on robustness, precision, and user-centric operation. Our flagship model, the KX-DJG ProSeries, incorporates the latest in servo-motor technology, PLC controls, and HMI interfaces. Below are the core technical parameters that define its capability.

Core Machine Specifications

Precision Sub-System Specifications

Frequently Asked Questions (FAQ) About the Machine for Double Jacketed Gaskets

Q: What is the primary advantage of using a Kaxite machine over manual fabrication for double-jacketed gaskets?

A: The primary advantage is the guaranteed consistency and quality. Manual processes are susceptible to variations in tape tension, sintering temperature, and bonding pressure, leading to potential weak points in the gasket jacket. The Kaxite Machine for Double Jacketed Gaskets automates every critical parameter, producing gaskets with repeatable, certified mechanical and sealing properties. This drastically reduces the risk of in-field gasket failure, which can lead to costly downtime, safety hazards, and product loss.

Q: Can your machine handle different types of PTFE or other fluoropolymers for the jacket?

A: Absolutely. The KX-DJG ProSeries is designed with material flexibility in mind. It can seamlessly process virgin PTFE tapes, as well as filled PTFE compounds containing graphite, carbon, or bronze. The machine's precise temperature control in the sintering chamber is crucial for correctly processing expanded PTFE (ePTFE), PFA, and FEP materials. Our team provides specific parameter recipes for each polymer type to ensure optimal bonding and crystallinity.

Q: How does the machine ensure a perfect bond between the metal core and the PTFE jacket without voids or delamination?

A: Kaxite's machine employs a multi-stage process for a flawless bond. First, the metal core is meticulously cleaned and pre-heated. During the tape-winding phase, a servo-controlled system applies perfectly consistent tension, laying each tape lap without gaps or overlaps. The integrated sintering chamber then applies a meticulously programmed thermal profile. This profile slowly ramps up temperature to melt the PTFE, allows for a precise dwell time for complete flow and bonding to the metal, and then controls the cool-down rate to achieve the correct crystalline structure, resulting in a homogenous, void-free laminate.

Q: What kind of training and support does Kaxite provide with the machine?

A: Kaxite provides comprehensive turnkey support. This includes detailed on-site installation and commissioning by our expert engineers. We conduct extensive hands-on training for your operators, maintenance technicians, and quality control staff, covering machine operation, routine maintenance, troubleshooting, and recipe programming. Furthermore, we offer 24/7 remote technical support, a detailed parts catalog, and scheduled preventive maintenance visits to ensure your production line remains operational for years to come.

Q: Is the machine configurable for custom gasket designs, such as non-standard profiles or inclusion of secondary sealing elements?

A: Yes, configurability is a core strength of the Kaxite system. The CNC programming allows for the production of standard RTJ, raised-face, and flat-face gaskets, as well as fully custom profiles. Optional modules can be integrated, such as a sealant injection station to apply a silicone or FEP sealant to the gasket lip during production, or a marking/laser engraving unit to imprint part numbers and certifications directly onto the finished gasket surface.

Q: How does the machine impact the overall cost-effectiveness of gasket production?

A: While the initial investment is significant, the Kaxite machine delivers a rapid return on investment through multiple channels. It dramatically reduces labor costs per unit, minimizes costly material scrap through precision handling, and virtually eliminates waste from quality rejects. Most importantly, by producing gaskets of unvarying high quality, it prevents the enormous indirect costs associated with seal failure—plant shutdowns, environmental incidents, and liability issues—making it an economically essential asset for serious manufacturers.

Key Applications and Industries Served

The gaskets produced by a Kaxite Machine for Double Jacketed Gaskets are critical in any application where safety and zero leakage are non-negotiable. Our equipment is found in factories supplying to:

• Oil, Gas, and Petrochemicals: For flange connections in refineries, offshore platforms, and pipelines handling hydrocarbons, acids, and high-pressure steam.
• Pharmaceutical and Biotechnology: In sterile process piping, fermenters, and API manufacturing where purity and containment are paramount.
• Chemical Processing: For reactors, columns, and heat exchangers using aggressive solvents and intermediates.
• Food and Dairy: In sanitary processing lines requiring easy-clean, non-contaminating seals that withstand CIP/SIP cycles.
• Power Generation: In both conventional and nuclear power plants for critical valve and pump seals.

The Kaxite Commitment to Excellence

Choosing a Machine for Double Jacketed Gaskets is a strategic decision that affects your product quality, operational efficiency, and market reputation. Kaxite stands apart through an unwavering commitment to engineering precision, durable construction using premium components, and deeply collaborative customer support. We don't just sell machinery; we become a partner in your production success, ensuring your sealing products are manufactured to the highest global standards. Our machines are built to deliver decade after decade of reliable, precision output, solidifying your position as a trusted supplier in the global industrial marketplace.
