Sealing Excellence: The Definitive Guide to Double Jacket Gaskets

In the demanding world of industrial sealing, where pressure, temperature, and aggressive media converge, standard gaskets often reach their performance limits. Leaks, blowouts, and premature failure in critical applications are not merely inconveniences; they represent significant safety hazards, environmental risks, and costly operational downtime. For engineers and procurement specialists seeking a robust, reliable sealing solution for extreme service conditions, the Double Jacket Gasket stands as the engineered answer. This guide delves into the design, advantages, specifications, and application of this superior sealing component, highlighting why Kaxite's precision manufacturing sets the industry benchmark.

What is a Double Jacket Gasket?

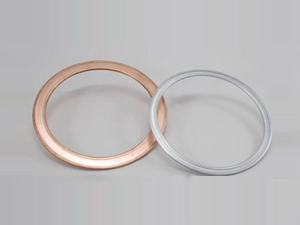

A Double Jacket Gasket is a high-performance, metallic sealing element designed for the most challenging flange connections. Its construction features a soft, compressible filler material—typically graphite, PTFE, or ceramic—encased within two layers of protective metal jackets. These jackets, usually made from stainless steel (304, 316), carbon steel, or exotic alloys like Monel or Inconel, are precision-folded over the filler core. This unique "jacketed" design combines the conformability and sealing characteristics of the non-metallic filler with the structural strength, temperature resistance, and blowout resistance of the metal casing. The result is a gasket that can handle significantly higher pressures and temperatures than standard composite gaskets, making it ideal for heat exchangers, pressure vessels, reactors, and high-pressure pipeline systems.

Key Advantages of Kaxite Double Jacket Gaskets

• Exceptional Pressure and Temperature Ratings: Capable of withstanding extreme conditions far beyond the limits of standard compressed non-asbestos (CNAF) or rubber gaskets.
• Superior Blowout Resistance: The double metal jacket provides a strong mechanical lock, preventing the soft filler from being extruded under high internal pressure or flange rotation.
• Excellent Chemical Compatibility: By selecting the appropriate filler (e.g., PTFE for aggressive chemicals, graphite for high heat) and metal jacket material, compatibility with a vast range of media is achieved.
• Crush Resistance and Dimensional Stability: The metal jackets maintain gasket integrity and prevent over-compression, ensuring a consistent seal throughout the bolt loading process.
• Reusability: In many cases, Kaxite Double Jacket Gaskets can be carefully recovered and reused, offering better lifecycle value compared to single-use alternatives.
• Versatility: Available in a wide range of standard and custom sizes, materials, and facing options to meet precise application requirements.

Detailed Product Parameters and Specifications

Kaxite engineers Double Jacket Gaskets to exacting standards. Below are the core parameters that define our product offerings.

1. Standard Materials of Construction

2. Standard Size Ranges & Technical Data

Double Jacket Gaskets: Frequently Asked Questions (FAQ)

Q: When should I choose a Double Jacket Gasket over a Spiral Wound Gasket?

A: The choice often depends on the specific application. Double Jacket Gaskets feature a continuous, solid metal jacket, providing a more uniform sealing surface and superior resistance to high compression loads and extrusion in low bolt-load situations. They are often preferred for heat exchanger channels, smaller sized high-pressure fittings, and services with thermal cycling. Spiral Wound Gaskets, with their layered "spring-like" construction, offer excellent resilience and are often preferred for larger diameter, high-pressure pipe flanges (ASME B16.5). For services with extreme temperatures and high pressures where both crush resistance and resilience are needed, consulting with a Kaxite technical specialist is recommended to select the optimal type.

Q: How do I determine the correct material combination for my service?

A: Material selection is a critical three-step process. First, identify the chemical composition, concentration, and phase (liquid/vapor) of the media to select a chemically resistant filler (e.g., PTFE for most acids/bases, Graphite for hydrocarbons). Second, determine the maximum continuous and cyclic operating temperature to ensure both filler and jacket materials are rated appropriately. Third, consider the external environment (atmospheric corrosion, chloride exposure) to select the jacket metal (e.g., 316SS for general chemical service, Carbon Steel for steam with proper coating). Kaxite provides comprehensive chemical compatibility charts and engineering support to guide this selection.

Q: What is the proper installation procedure for a Double Jacket Gasket?

A: Correct installation is paramount for performance. First, ensure the flange faces are clean, undamaged, and have the correct surface finish (typically 125-250 µin Ra). The gasket must be centered perfectly on the flange. Use a criss-cross bolt tightening pattern (star pattern) in multiple incremental steps (e.g., 30%, 60%, 100% of final torque) to achieve even compression. Always refer to the manufacturer's recommended torque value, which is based on gasket material, size, and bolt class. Over-torquing can crush the filler and damage the jacket, while under-torquing can lead to leakage. Never reuse a gasket that has been heavily compressed or shows signs of jacket distortion.

Q: Can Kaxite produce custom-shaped Double Jacket Gaskets, not just round ones?

A: Absolutely. While circular gaskets for pipe flanges are standard, Kaxite specializes in manufacturing custom-profile Double Jacket Gaskets. This includes oval, rectangular, obround, and free-form shapes required for manways, heat exchanger channels, reactor lids, and proprietary equipment. We work from customer-supplied sketches, CAD drawings, or even physical samples to produce a gasket that matches your exact dimensions and technical requirements.

Q: What quality control measures does Kaxite implement for these gaskets?

A: Kaxite's quality control is integral to our manufacturing process. It begins with certified raw material sourcing. During production, we conduct in-process checks on jacket forming, filler density, and overall dimensions. Every finished gasket undergoes a final inspection where critical dimensions (ID, OD, thickness) are verified using calibrated instruments against the customer order. Material certifications (MTC) are available for both metal and filler materials. For critical applications, we can provide additional testing and documentation as per customer specifications.

Q: Are there applications where a Double Jacket Gasket is not recommended?

A: Yes, while versatile, they are not a universal solution. They are generally not recommended for standard low-pressure water or air services where a cheaper, non-metallic gasket is perfectly adequate. They may also be less suitable for flanges with significant radial misalignment or irregular surfaces, where a more conformable gasket type might be better. Additionally, for services with extreme thermal cycling on very large diameters, the differential expansion between the jacket and filler must be carefully evaluated. An alternative like a Kammprofile or Spiral Wound Gasket might be suggested by our engineers.
