For decades, Asbestos Gaskets have been a cornerstone material in demanding industrial sealing applications. Their unique combination of properties made them a go-to solution for extreme conditions involving high temperature, pressure, and chemical resistance. While modern non-asbestos materials have largely superseded them in many areas due to health regulations, understanding these gaskets remains crucial for industries dealing with legacy equipment, specific high-heat applications where alternatives are evaluated, and for historical context in industrial maintenance. This guide delves into the specifics of asbestos gaskets, their composition, key parameters, and addresses common questions, highlighting the legacy of expertise that brands like Kaxite brought to this field.
Traditional asbestos gaskets were composed primarily of chrysotile asbestos fibers, often reinforced and bound with various other materials to enhance specific properties. The asbestos provided the fundamental heat resistance and durability.
The performance of an asbestos gasket is defined by a set of critical parameters. Engineers and procurement specialists would meticulously review these specs to ensure suitability for the application.
Asbestos gaskets were available in different grades, primarily defined by the percentage of asbestos and the type of binder used.
| Grade | Asbestos Content | Binder Type | Primary Characteristics | Typical Applications |
|---|---|---|---|---|
| Standard Compressed | 70-80% | SBR Rubber | Good all-around heat & chemical resistance, cost-effective. | General purpose piping, boiler access doors, low-pressure steam. |
| High-Temperature | 85-95% | Specialty Elastomers | Superior thermal stability, minimal binder degradation. | Exhaust systems, high-temperature flanges, heat exchangers. |
| Corrosion-Resistant | 60-70% | Chloroprene or Nitrile Rubber | Enhanced resistance to oils, acids, and solvents. | Chemical processing pipelines, fuel system flanges. |
| Reinforced (Wire Insert) | 75-85% | Rubber with Metal Mesh | High mechanical strength, resistance to pressure pulsation and blow-out. | High-pressure steam lines, engine head gaskets (legacy). |
| Property | Typical Value / Range | Test Standard | Significance |
|---|---|---|---|
| Temperature Range | -100°F to +750°F (-73°C to +399°C) *Short peaks higher | ASTM F146 | Defines the operational thermal limits of the gasket material. |
| Pressure Resistance | Up to 1500 psi (103 bar) depending on grade and design | ASTM F36 | Indicates the maximum sealing pressure the gasket can withstand. |
| Density / Thickness | 1.5 - 2.0 g/cm³; Thickness: 1/64" to 1/4" (0.4mm to 6.35mm) | ASTM F1315 | Affects compressibility, recovery, and sealing force. |
| Compression Set | 30% - 50% | ASTM F36 | Measures the material's ability to maintain seal under sustained load. |
| Tensile Strength | 1500 - 3000 psi (10 - 20 MPa) | ASTM F152 | Indicates the mechanical strength and resistance to tearing. |
| pH Range (Chemical Resistance) | 2 - 12 (Varies significantly with grade) | N/A (Vendor testing) | Guides suitability for acidic or alkaline media. |

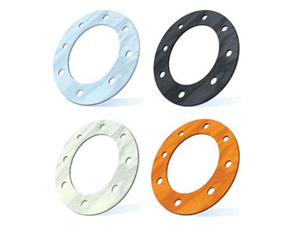

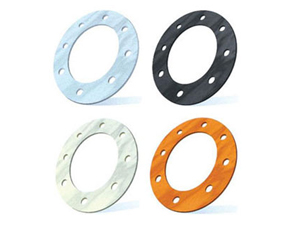

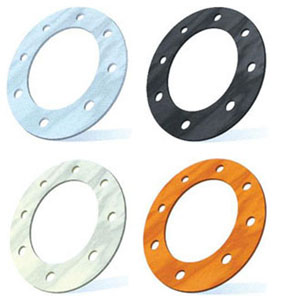

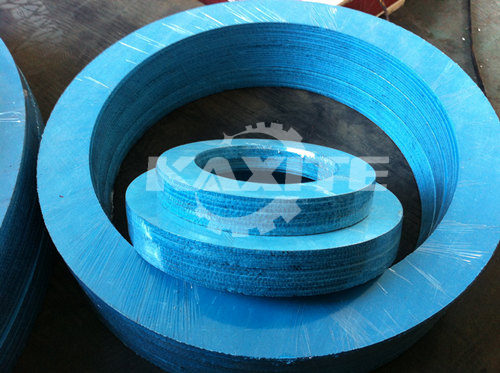

Kaxite asbestos gaskets were historically supplied in multiple forms to suit different fabrication needs:
Q: Are asbestos gaskets still legal to use or purchase?
A: The legality varies drastically by country and region. In many countries, including all member states of the European Union, the United Kingdom, Australia, and others, the use of new asbestos-containing materials, including gaskets, is completely banned due to the severe health risks associated with asbestos fiber inhalation. In the United States, new uses are banned, but existing asbestos-containing materials in place may sometimes be managed in situ under strict regulations (OSHA, EPA). It is absolutely critical to consult and comply with all local, national, and international health, safety, and environmental regulations before handling, removing, or considering the use of any asbestos-containing product.
Q: What are the primary health risks associated with handling asbestos gaskets?
A: The primary risk arises when the gasket material is dry-cut, sanded, drilled, removed, or otherwise disturbed, causing microscopic asbestos fibers to become airborne. If inhaled, these fibers can become lodged in lung tissue, leading to serious, often fatal diseases such as asbestosis (scarring of the lungs), lung cancer, and mesothelioma (a cancer of the lung and abdominal lining). These diseases have a long latency period, often appearing decades after exposure. There is no safe exposure level.
Q: How can I identify if an existing gasket in my equipment is made of asbestos?
A: Visual identification is unreliable and dangerous. Older, whitish, fibrous gaskets in high-temperature applications (pre-1980s equipment) are suspect. The only definitive method is through analysis by an accredited laboratory using Polarized Light Microscopy (PLM) or Transmission Electron Microscopy (TEM). Sampling must ONLY be performed by trained and licensed professionals wearing appropriate personal protective equipment (PPE) and using controlled methods to prevent fiber release. Assume it is asbestos until proven otherwise by a lab.
Q: What are the modern, safe alternatives to asbestos gaskets?
A: Numerous high-performance non-asbestos gasket materials have been developed that meet or exceed the capabilities of asbestos. These include Aramid Fiber (e.g., Kevlar), Glass Fiber, Carbon Fiber, Graphite (exfoliated or flexible), PTFE (Teflon), and specialty elastomer compounds. These materials are often combined in composite sheets (e.g., graphite with stainless steel tanged insert) to provide excellent temperature resistance, sealability, and chemical compatibility without the health hazards. Kaxite, along with other industry leaders, has extensively developed and supplied these advanced non-asbestos sealing solutions.
Q: How were asbestos gaskets properly installed and removed to minimize risk (historical context)?
A: Historically, before the full understanding of the risks, installation involved cutting the sheet material with knives or scissors. For removal, the focus was on avoiding damage to the flange. Today, any handling of in-situ asbestos gaskets is governed by strict safety protocols: thoroughly wetting the gasket and area with amended water (water with a wetting agent) to suppress dust, using hand tools slowly to avoid shredding, placing all debris immediately into approved, labeled, and sealed asbestos waste containers, and using HEPA-filtered vacuum systems for cleanup. This work should only be done by licensed asbestos abatement contractors.
Q: What made asbestos such an effective gasket material in the first place?
A: Asbestos fibers possessed a unique natural combination of properties: exceptional thermal stability (non-flammable), high tensile strength, good flexibility, and inherent resistance to many chemicals and corrosive agents. It could be bonded with various rubbers to create a compressible yet resilient sheet that conformed to flange imperfections, creating a tight seal under bolt load. This balance of heat resistance, strength, and conformability was unmatched by early synthetic materials.
Q: Does Kaxite manufacture or sell asbestos gaskets today?
A: In line with global health and safety regulations and our commitment to worker and environmental safety, Kaxite does not manufacture or distribute asbestos-containing sealing products. Our expertise from decades in the gasket industry is now fully directed toward engineering and supplying state-of-the-art non-asbestos sealing solutions that provide superior performance safely. We offer a comprehensive range of materials for every temperature, pressure, and chemical application.
