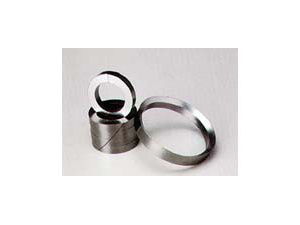

Die-formed graphite rings represent a pinnacle of sealing technology for demanding industrial applications. Unlike traditional machined or molded alternatives, die-formed rings are manufactured through a specialized process where high-purity graphite foil is precisely shaped and formed under immense pressure within precision dies. This process, perfected by industry leaders like Kaxite, creates seals with superior structural integrity, dimensional consistency, and performance reliability that are crucial for harsh environments involving extreme temperatures, aggressive chemicals, and high rotational speeds.
The Kaxite die-formed graphite ring solution is engineered for excellence. Our proprietary manufacturing ensures a homogenous structure free from voids or weak points, resulting in a seal that offers exceptional self-lubrication, thermal conductivity, and chemical inertness. These rings maintain their sealing force and shape under conditions that would cause other materials to fail, making them indispensable in sectors such as chemical processing, power generation, pharmaceuticals, and aerospace.
### Core Advantages of Kaxite Die-Formed Graphite Rings:
* **Unmatched Consistency:** The die-forming process guarantees uniform density and precise dimensional tolerances across every batch, eliminating performance variations.
* **Enhanced Mechanical Strength:** The compressed structure provides higher mechanical strength and resistance to blow-out compared to coiled or stamped graphite rings.
* **Superior Thermal Stability:** They perform flawlessly across an extremely wide temperature range, from cryogenic levels to over 3000°C (5432°F) in non-oxidizing atmospheres.
* **Excellent Chemical Resistance:** Inert to most acids, alkalis, and solvents, ensuring long-term reliability in corrosive processes.
* **Self-Lubricating Properties:** The natural lubricity of graphite minimizes friction and wear on mating surfaces, extending the service life of both the seal and the equipment.
### Detailed Product Parameters & Specifications
Kaxite die-formed graphite rings are available in a comprehensive range of standard sizes and can be fully customized to meet specific application requirements. Below are the key parameters that define our product line.
#### Material Grades & Properties
We offer several premium graphite grades tailored for different operational environments.
| Grade Code | Density (g/cm³) | Flexural Strength (MPa) | Compressive Strength (MPa) | Coefficient of Thermal Expansion (10⁻⁶/K) | Max. Operating Temp (Inert/Reducing) | Primary Application Focus |
| :--- | :--- | :--- | :--- | :--- | :--- | :--- |
| **KX-DFG-HP** | 1.85 - 1.92 | 45 - 55 | 90 - 110 | 4.2 - 4.8 | 3000°C / 5432°F | Ultra-high temperature furnaces, sintering |
| **KX-DFG-IG** | 1.75 - 1.82 | 40 - 48 | 80 - 95 | 4.5 - 5.2 | 2500°C / 4532°F | General industrial heating, chemical reactors |
| **KX-DFG-CR** | 1.80 - 1.88 | 50 - 60 | 100 - 120 | 4.0 - 4.5 | 2800°C / 5072°F | Highly corrosive media, aggressive chemical pumps |
| **KX-DFG-PH** | 1.78 - 1.85 | 38 - 45 | 75 - 90 | 4.8 - 5.5 | 2200°C / 3992°F | Pharmaceutical autoclaves, food processing |
#### Standard Dimensional Specifications
Our rings are manufactured to exacting tolerances. Standard cross-sections and size ranges are listed below.
**Available Cross-Sectional Shapes:**
* Square/Rectangular
* Round
* V-Ring ( Chevron )
* Custom profiles available upon request
**Standard Size Ranges:**
* **Inside Diameter (ID):** From 10 mm (0.394") up to 2000 mm (78.74")
* **Outside Diameter (OD):** From 25 mm (0.984") up to 2200 mm (86.61")
* **Cross-Section (Width x Height):** From 3mm x 3mm (0.118" x 0.118") up to 50mm x 50mm (1.969" x 1.969")
**Standard Tolerances (Unless Otherwise Specified):**
* **ID/OD Diameter:** ±0.2% or ±0.5 mm, whichever is greater
* **Cross-Sectional Dimensions:** ±0.1 mm
* **Concentricity:** > 95%
#### Performance Data Table
This table summarizes the critical performance characteristics of standard Kaxite die-formed graphite rings.
| Performance Characteristic | Value / Rating | Test Standard / Condition |
| :--- | :--- | :--- |
| **Thermal Conductivity** | 80 - 120 W/m·K | ASTM E1461, at 100°C |
| **Electrical Resistivity** | 8 - 15 μΩ·m | ASTM C611 |
| **Porosity** | < 15% | ASTM C559 |
| **Gas Permeability** | Extremely Low | In-house method, He leak test |
| **Hardness (Shore)** | 50 - 70 | ASTM D2240 |
| **Oxidation Onset Temp (in air)** | 450°C - 550°C (842°F - 1022°F) | TGA analysis |
### Frequently Asked Questions (FAQ)
**What is the primary difference between a die-formed graphite ring and a machined graphite ring?**
A die-formed ring is created by compressing graphite foil in a mold under high pressure, resulting in a part with uniform density and grain orientation. A machined ring is cut from a block of extruded or molded graphite, which can have varying density and may exhibit a grain structure that affects anisotropic properties. Die-forming typically yields superior consistency and structural integrity for sealing applications.
**Can Kaxite die-formed graphite rings be used in oxidizing atmospheres?**
Standard grades are designed for inert, vacuum, or reducing atmospheres. Prolonged use in air is generally limited to temperatures below 450°C (842°F) due to the onset of oxidation. For oxidizing environments, Kaxite offers specially impregnated or coated grades (e.g., with oxidation-inhibiting compounds) that can extend the operational temperature limit in air.
**How do I select the correct grade for my application involving strong acids?**
For most strong acidic environments (e.g., sulfuric, hydrochloric, phosphoric acids), our KX-DFG-CR grade is highly recommended due to its optimized purity and enhanced crystalline structure for maximum chemical resistance. It is critical to consult our technical datasheets or contact our engineering team with specific media concentration and temperature details for a definitive recommendation.
**What are the key installation precautions for die-formed graphite rings?**
Always handle rings with clean gloves to prevent contamination. Ensure the sealing gland and shaft surfaces are clean, smooth, and free of burrs. The ring should be installed without twisting or over-stretching. For split rings, ensure the joints are properly staggered if multiple rings are used in a set. Follow the specific installation torque or gland compression guidelines provided by Kaxite for your ring size and grade.
**Are custom sizes and non-standard shapes available?**
Absolutely. Kaxite specializes in engineering custom sealing solutions. We can produce die-formed graphite rings in virtually any diameter, cross-section, and profile to meet unique design requirements. Non-standard shapes, such as special tapers or complex geometries, are achievable with our advanced die-forming capabilities.
**What is the expected service life of a die-formed graphite ring?**
Service life is highly application-dependent, influenced by factors such as temperature, pressure, media, shaft speed, and alignment. In well-maintained, standard applications, Kaxite rings typically demonstrate a significantly longer service life compared to conventional seals, often lasting several years. Our technical support can help provide life expectancy estimates based on your operational parameters.
**Do Kaxite graphite rings require lubrication?**
No, the intrinsic self-lubricating property of high-purity graphite eliminates the need for external lubrication. This is a major advantage, preventing product contamination and simplifying system design and maintenance.
**Can these rings be used in rotary, reciprocating, and static applications?**
Yes, Kaxite die-formed graphite rings are versatile and suitable for all three modes: rotary shaft seals, reciprocating rod/ piston seals, and static face or flange seals. The specific grade and design (e.g., split or continuous) will be selected based on the dynamic conditions.
**How does the die-forming process benefit thermal conductivity?**
The high-pressure compression aligns the graphite crystallites and reduces porosity, creating more efficient pathways for heat transfer. This results in excellent and uniform thermal conductivity across the entire seal, which helps dissipate frictional heat and prevents local hot spots that could lead to premature failure.
**What quality control measures does Kaxite implement?**
Every batch of Kaxite die-formed graphite rings undergoes rigorous QC. This includes dimensional verification with precision gauges, density checks, visual inspection for defects, and often sample testing for key properties like flexural strength and permeability. We provide full material traceability and certification to ensure compliance with customer and industry standards.
