Advanced Graphite Sheet Solutions from a Leading Manufacturer

In the world of advanced thermal management materials, Graphite Sheet stands out as a versatile and high-performance solution. Engineered for excellence and rigorously tested, Kaxite's graphite sheets are designed to meet the demanding requirements of modern electronics, industrial machinery, and high-tech applications. This material leverages the natural crystalline structure of graphite, offering unparalleled thermal conductivity in a thin, flexible, and easy-to-integrate format. At Kaxite, we specialize in producing premium-grade graphite sheets that ensure your devices run cooler, last longer, and perform more reliably.

What is a Graphite Sheet?

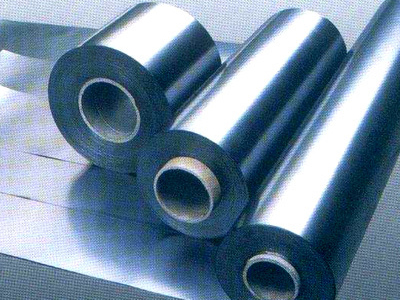

A graphite sheet is a thin, flexible material made from compressed exfoliated graphite. Through a sophisticated manufacturing process, natural graphite flakes are expanded and then compressed into rolls or sheets without using a binder. This results in a material with a highly aligned planar structure, which is the key to its exceptional thermal properties. Unlike traditional metal heat spreaders, graphite sheets are remarkably lightweight, conformable, and excel at spreading heat evenly across a surface, preventing hot spots and improving overall system thermal efficiency.

Key Advantages of Kaxite Graphite Sheets

• Exceptional Thermal Conductivity: In-plane thermal conductivity ranging from 300 to 1800 W/mK, far surpassing most metals.
• Ultra-Thin and Lightweight: Available in thicknesses as low as 0.01mm, adding minimal weight and volume to assemblies.
• High Flexibility: Can be easily bent, folded, or cut to fit complex geometries and tight spaces.
• Excellent EMI Shielding: Provides effective electromagnetic interference shielding, protecting sensitive components.
• Chemical Resistance: Stable and inert in most environments, resistant to oxidation and corrosion.
• Ease of Integration: Can be combined with adhesives, tapes, or other materials for simple installation.

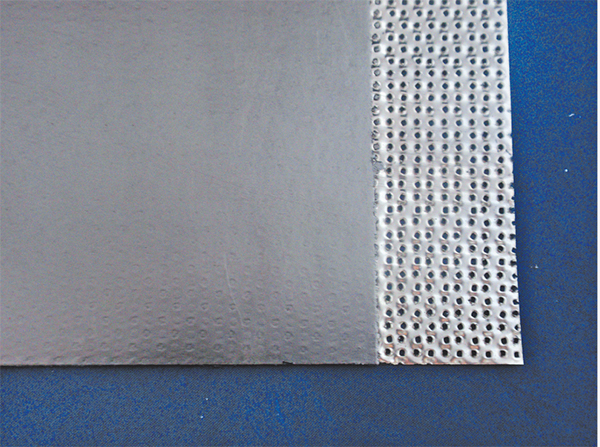

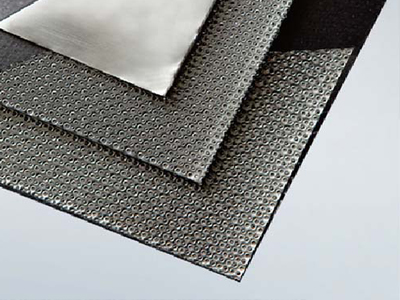

Detailed Product Specifications & Parameters

Kaxite offers a comprehensive range of graphite sheets tailored for different performance needs. Our standard product lines are categorized based on their primary thermal conductivity and typical applications.

Additional Physical & Electrical Properties

• Operating Temperature: -40°C to +400°C (in inert atmosphere), up to +600°C for short periods.
• Tensile Strength: 4 - 10 MPa (varies with thickness and density).
• Compressibility: 10 - 40% under typical mounting pressures.
• Electrical Conductivity: In-plane resistivity of 0.0001 - 0.001 ohm-cm.
• Color: Standard black graphite. Custom coatings (e.g., polyimide, aluminum foil) available.

Frequently Asked Questions (FAQ) About Graphite Sheets

Q: How does a graphite sheet work for thermal management?
A: A graphite sheet works by rapidly spreading heat laterally across its plane. It is placed between a heat source (like a CPU) and a heat sink or chassis. The high in-plane conductivity allows it to efficiently "spread" the concentrated heat over a larger area, making the subsequent heat dissipation to the air or through the out-of-plane direction much more effective. This reduces peak temperatures and thermal gradients.

Q: What is the difference between in-plane and through-plane thermal conductivity?
A: This is a critical distinction. In-plane thermal conductivity refers to how well heat travels along the surface of the sheet. Graphite sheets have extremely high values here (hundreds of W/mK). Through-plane conductivity refers to heat transfer through the thickness of the sheet, which is significantly lower (typically 5-30 W/mK). This anisotropic property makes them ideal as heat spreaders, not as substitutes for thermal interface materials (TIMs) which need high through-plane conductivity.

Q: Can Kaxite graphite sheets replace thermal pads or grease?
A: Not directly. Graphite sheets are primarily heat spreaders. They often work in conjunction with thermal interface materials (TIMs) like grease or pads. The TIM fills microscopic air gaps between the component and the graphite sheet (or between the sheet and the heat sink), ensuring optimal thermal contact. The graphite sheet then spreads the heat. However, Kaxite offers composite solutions where graphite is laminated with a conductive adhesive on one or both sides, creating an integrated spreading and interfacing solution.

Q: Are graphite sheets electrically conductive? Is this a concern?
A: Yes, graphite sheets are electrically conductive in the in-plane direction. This is a key consideration during design and installation. They must be carefully positioned to avoid creating short circuits between components or traces on a PCB. Insulating layers (like mylar or polyimide films) can be applied, or the sheet can be die-cut to specific shapes to prevent contact with live circuits. Kaxite provides design support to ensure safe and effective integration.

Q: How do I cut and handle a graphite sheet?
A> Kaxite graphite sheets are user-friendly. They can be easily cut with sharp scissors, a blade, or die-cut for high-volume production. Handling should be done with clean gloves to prevent contamination from oils and dirt, which can slightly affect performance. The material is robust but should be handled with care to avoid tearing, especially in ultra-thin gauges. We provide sheets with or without protective release liners.

Q: What industries commonly use Kaxite graphite sheets?
A: Our graphite sheets are used across a wide spectrum of industries. Key sectors include Consumer Electronics (smartphones, laptops, tablets), Telecommunications (5G equipment, routers), Automotive (battery management systems, LED headlights, infotainment), LED Lighting, Medical Devices, and Industrial Power Electronics.

Q: How does Kaxite ensure the quality and consistency of its graphite sheets?
A: Kaxite employs a vertically integrated manufacturing process with strict quality control at every stage, from raw graphite material selection to final slitting and inspection. We use advanced testing equipment to verify thermal conductivity, density, thickness uniformity, and electrical properties for every production batch. Our commitment to ISO 9001 standards guarantees that you receive a reliable, high-performance product every time.

Q: Can you provide custom-sized or shaped graphite sheets?
A: Absolutely. Kaxite specializes in providing customized thermal solutions. We offer precision die-cutting, kissing, slitting, and lamination services. We can produce graphite sheets in specific shapes, sizes, and with various adhesive backings or composite structures to fit your exact application requirements and simplify your assembly process.

Application Guidelines and Best Practices

To maximize the performance of a Kaxite graphite sheet in your application, follow these guidelines:

1. Surface Preparation: Ensure both the heat source and the mating surface (heat sink or chassis) are clean, flat, and smooth for optimal contact.
2. Correct Orientation: Install the sheet so its high-conductivity plane is aligned to spread heat away from the source. The sheet should cover as much area as possible.
3. Adequate Pressure: Apply consistent, moderate pressure to secure the sheet. Mounting clips, screws, or adhesive backings help maintain good thermal contact.
4. Electrical Isolation: If the application requires it, specify a graphite sheet with an insulating layer or ensure there is no electrical contact with live circuits.
5. Thermal Modeling: For critical applications, Kaxite's engineering team can assist with thermal simulation and analysis to optimize the design and material selection before prototyping.
