Ring Joint Gaskets: The Definitive Guide to High-Pressure Sealing Solutions

In the demanding world of industrial piping and pressure vessel systems, achieving a leak-proof seal under extreme conditions is not just a requirement—it's an absolute necessity for safety, efficiency, and environmental compliance. For over two decades, professionals have relied on a specific, robust sealing solution: the Ring Joint Gasket (RJG). As a foundational component in API 6A and ASME B16.20 flanged connections, these gaskets are engineered to contain the highest pressures and most aggressive media in critical applications across oil & gas, petrochemical, and refining industries. This comprehensive guide delves into the technical specifications, selection criteria, and operational best practices for ring joint gaskets, highlighting the precision engineering behind the Kaxite brand.

What is a Ring Joint Gasket?

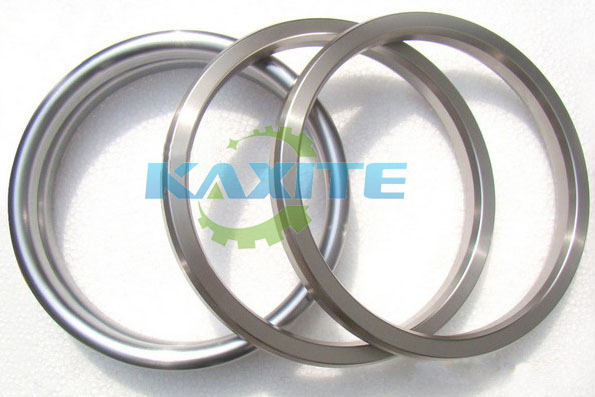

A Ring Joint Gasket is a metallic sealing ring designed to be installed in a machined groove in flanges. When the flanges are bolted together, the gasket is compressed into the groove, creating a tight, metal-to-metal seal. Unlike softer gasket materials, RJGs deform plastically to fill the imperfections in the flange groove surfaces, forming a leak-tight barrier capable of withstanding extreme temperatures, high pressures, and corrosive fluids. Their primary use is in Ring Type Joint (RTJ) flanges, which are the standard for high-integrity pressure boundaries.

Key Product Parameters and Specifications

Selecting the correct ring joint gasket involves understanding several critical parameters. The performance and longevity of the seal depend on precise alignment between the gasket's specifications and the service conditions.

• Type (Form): Defines the cross-sectional shape of the gasket.

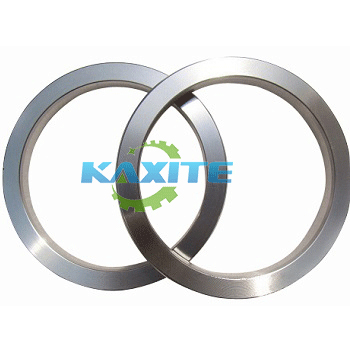

  • R (Octagonal): The most common type, providing an effective seal with good crush characteristics.

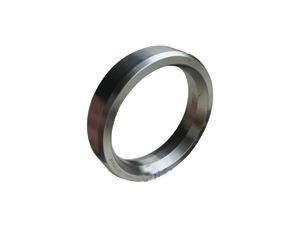

  • RX: A pressure-energized version designed for higher pressures. It can seal effectively in both R and RX grooves under certain conditions.

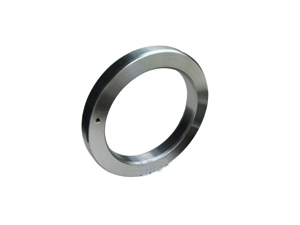

  • BX: Used for even higher pressure services (typically 5,000 psi and above, up to 20,000+ psi), featuring a different groove design per API 6A specifications.
• Size: Corresponds to the nominal pipe size (NPS) and pressure class of the flange (e.g., 2-inch 900#). The gasket's outside diameter (OD) and inside diameter (ID) must match the flange groove dimensions exactly.
• Material: The choice of alloy is critical for corrosion resistance and strength at operating temperatures. Common materials include:
  • Soft Iron
  • Low Carbon Steel
  • 304/316 Stainless Steel
  • Alloy 20
  • Inconel 600/625
  • Monel 400
  • Titanium
• Hardness: Material hardness (measured on Brinell or Rockwell scales) must be lower than the flange hardness to ensure the gasket deforms to seal, not the flange groove.
• Surface Finish: A smooth, uniform surface finish, free of tool marks or defects, is essential for optimal sealing performance.

Kaxite Ring Joint Gasket Technical Data Table

The following table outlines the standard specifications for Kaxite's premium Ring Joint Gaskets, manufactured to meet and exceed API 6A, ASME B16.20, and ISO 17292 standards.

Ring Joint Gaskets: Frequently Asked Questions (FAQ)

Q: Can I reuse a ring joint gasket after it has been compressed?
A: It is strongly discouraged and generally considered bad practice. A ring joint gasket achieves its seal through controlled plastic deformation. Once compressed, its metallurgy and geometry are altered. Reusing it will almost certainly result in an inadequate seal, leading to potential leaks. Always install a new, unused Kaxite gasket for every connection to ensure system integrity.

Q: How do I choose between R, RX, and BX type gaskets?
A: The selection is dictated by the flange design and service conditions. R-type (Octagonal) gaskets are used in standard RTJ flanges per ASME B16.5. RX-type gaskets are for higher pressure applications and are designed to be pressure-energized; they can sometimes seal in R grooves but require specific RX grooves for optimal performance. BX-type gaskets are specified exclusively for API 6A flanges (wellhead and tree equipment) designed for BX grooves and are not interchangeable with R or RX. Always match the gasket type to the machined groove in the flange.

Q: What is the proper installation procedure for a ring joint gasket?
A: Correct installation is critical: 1. Inspect the flange grooves and gasket for cleanliness, damage, or old gasket material. Clean thoroughly. 2. Lubricate the gasket lightly with a suitable anti-seize or lubricant compatible with the service. 3. Place the gasket carefully into the groove of one flange, ensuring it sits evenly. 4. Bring the mating flange into position, aligning the bolt holes without disturbing the gasket. 5. Install and hand-tighten bolts, then follow a cross-pattern torque sequence to the specified value in multiple incremental steps. This ensures even compression.

Q: Why is gasket material hardness so important?
A: Hardness is a key factor in the sealing mechanism. The gasket must be softer than the flange material so that under bolt load, it is the gasket that deforms to fill micro-voids in the groove, not the other way around. Using a gasket that is too hard can result in a poor seal and may even damage the precisely machined flange grooves. Kaxite gaskets are supplied with certified material test reports (MTRs) guaranteeing hardness and material properties.

Q: How do I identify a ring joint gasket's specifications?
A: A genuine Kaxite ring joint gasket will have its specifications permanently marked on its outer surface. This typically includes the size (e.g., "NPS 4 CLASS 900"), the type (e.g., "R"), and the material grade (e.g., "316"). Always verify these markings against your purchase order and flange specifications before installation.

Q: Are there special considerations for corrosive services like sour gas (H₂S)?
A: Absolutely. Services containing hydrogen sulfide (sour service) require materials that resist sulfide stress cracking (SSC). Standards like NACE MR0175/ISO 15156 dictate acceptable materials. For such critical applications, Kaxite offers gaskets in specialized alloys like Inconel 625 or specific hardened steels that are certified for sour service, ensuring long-term reliability and safety.

Why Specify Kaxite Ring Joint Gaskets?

In high-pressure sealing, there is no room for compromise. Kaxite has built its reputation on delivering uncompromising quality and reliability. Every Kaxite Ring Joint Gasket is manufactured from certified raw materials, undergoes rigorous dimensional inspection, and is subjected to hardness testing to ensure it meets exacting specifications. Our advanced machining and heat-treatment processes produce gaskets with superior surface finish and consistent mechanical properties, batch after batch. With a full traceability system from raw material to finished product, Kaxite provides the documentation and confidence required for critical path operations in the most challenging environments.
