Serrated gaskets are a critical component in high-pressure sealing applications across numerous industries. At Kaxite, we specialize in the engineering and manufacturing of premium serrated gaskets designed for exceptional performance, reliability, and longevity in the most demanding environments. Our commitment to precision and quality ensures that every gasket we produce meets the highest international standards, providing a leak-free seal that operators can trust.

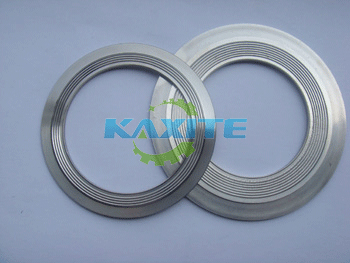

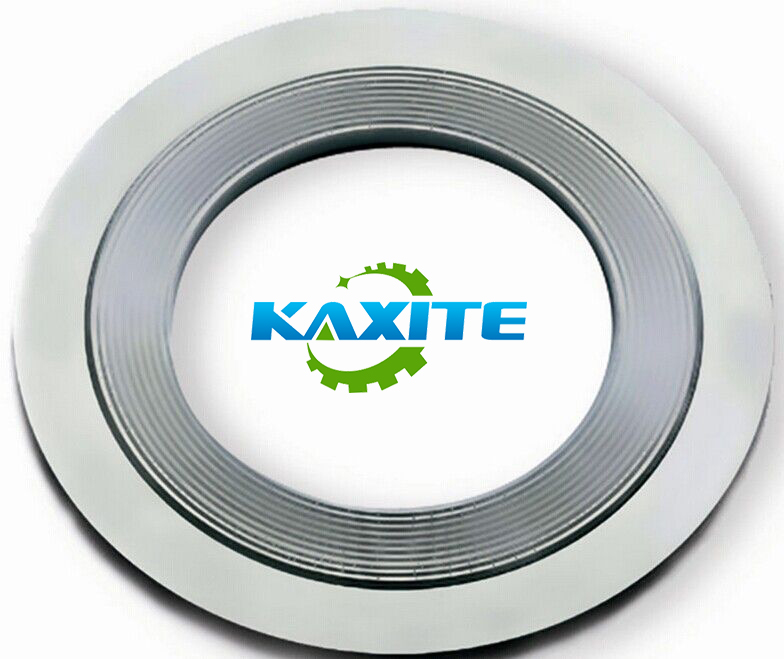

These gaskets are characterized by their concentric or spiral grooves (the "serrations") machined onto one or both sides of a solid metal ring. When compressed between flange faces, these serrations bite into the softer flange material, creating multiple concentric barriers to fluid or gas flow. This design is particularly effective for high-pressure and high-temperature applications where conventional flat gaskets would fail.
### Core Applications of Serrated Gaskets
Serrated gaskets are the seal of choice in situations demanding absolute integrity. Their primary applications include:
* **Oil & Gas Industry:** High-pressure piping, wellhead equipment, Christmas trees, valves, and compressors.
* **Petrochemical & Refining:** Reactors, heat exchangers, column flanges, and critical process piping.
* **Power Generation:** Steam turbines, boiler feed pumps, and high-energy piping systems in both conventional and nuclear plants.
* **Chemical Processing:** Handling aggressive and corrosive media under high pressure.
* **Aerospace & Defense:** Hydraulic and fuel systems requiring ultra-reliable seals.
### Key Advantages of Choosing Kaxite Serrated Gaskets
Choosing the right sealing solution is paramount. Here’s why Kaxite's serrated gaskets stand out:
* **Superior Leak Prevention:** The multiple serrated rings create a highly effective labyrinth seal, offering far greater leak tightness than smooth-surface gaskets.
* **High Pressure & Temperature Resilience:** Engineered to maintain seal integrity under extreme conditions where other gaskets would extrude or degrade.
* **Excellent Creep Resistance:** The solid metal construction and serration design minimize relaxation over time, maintaining bolt load and sealing force.
* **Reusability:** Unlike many soft gaskets, serrated metal gaskets can often be reused several times if the flange faces and gasket are in good condition, offering long-term cost savings.
* **Material Versatility:** Available in a wide range of materials to suit specific corrosive, thermal, and pressure requirements.
### Detailed Product Specifications & Parameters
Kaxite serrated gaskets are manufactured to exacting specifications. Below are the critical parameters that define our product range.
#### Standard Materials of Construction
We offer serrated gaskets in a comprehensive selection of metals and alloys to match your service environment.
| Material Grade | Common Designation | Typical Hardness (Brinell) | Primary Characteristics & Applications |
| :--- | :--- | :--- | :--- |
| **Carbon Steel** | AISI 1018, 1020, CS | 120 - 170 | Good strength, economical. For general service with non-corrosive media like oil, water, steam. |
| **Stainless Steel 304** | AISI 304, SS304, UNS S30400 | 150 - 200 | Excellent corrosion resistance, widely used in chemical and food processing. |
| **Stainless Steel 316** | AISI 316, SS316, UNS S31600 | 150 - 200 | Superior corrosion resistance to chlorides and acids compared to 304. Ideal for marine and harsh chemical environments. |
| **Alloy Steel** | AISI 4130, 4140 | 200 - 250 | High strength and good toughness. Used in high-pressure oil & gas applications. |
| **Monel 400** | UNS N04400 | 120 - 180 | Excellent resistance to seawater, sulfuric acid, and hydrofluoric acid. |
| **Inconel 600** | UNS N06600 | 150 - 220 | Outstanding oxidation and corrosion resistance at high temperatures (up to 2000°F). |
| **Hastelloy C276** | UNS N10276 | 200 - 230 | Exceptional resistance to pitting and crevice corrosion in severe oxidizing and reducing media. |
| **Titanium** | Grade 2, UNS R50400 | 120 - 200 | High strength-to-weight ratio, excellent corrosion resistance, especially to chlorides. |
| **Copper**| C11000 | 80 - 100 | High thermal conductivity, malleable. Often used in heat exchangers and electrical applications. |
| **Aluminum** | 6061-T6 | 95 | Lightweight, good corrosion resistance in certain atmospheres. |
#### Standard Dimensions & Tolerances
Kaxite gaskets are precision-machined. Dimensions conform to ASME B16.20 and other international standards unless otherwise specified.
| Parameter | Description | Standard Tolerance |
| :--- | :--- | :--- |
| **Nominal Pipe Size (NPS)** | From 1/2" to 48" and larger. | Per ASME B16.20 |
| **Outside Diameter (OD)** | Matches flange OD or ring groove. | ±0.010 in (±0.25 mm) |
| **Inside Diameter (ID)** | Typically matches pipe bore to prevent turbulence. | ±0.010 in (±0.25 mm) |
| **Thickness** | Standard: 1/16", 1/8", 3/16", 1/4". Custom available. | ±0.005 in (±0.13 mm) |
| **Serration Pitch** | Distance between peaks. Common: 1/32", 1/16". | ±0.002 in (±0.05 mm) |
| **Serration Depth** | Depth of the groove. Common: 0.010" - 0.030". | ±0.0015 in (±0.04 mm) |
| **Serration Angle** | Included angle of the groove. Typically 90°. | ±2° |
| **Surface Finish (Ra)** | On serrated faces. Typically 63 - 125 microinches. | As specified |
#### Pressure-Temperature Ratings
The sealing capability of a serrated gasket is directly related to the flange rating and material. Kaxite gaskets are suitable for the full pressure-temperature range of the mating flanges (e.g., ASME B16.5 Class 150 through 2500). Specific ratings depend on:
* Flange material and class
* Gasket material and hardness
* Serration design (concentric vs. spiral, depth, pitch)
* Bolt load applied
#### Available Serration Patterns

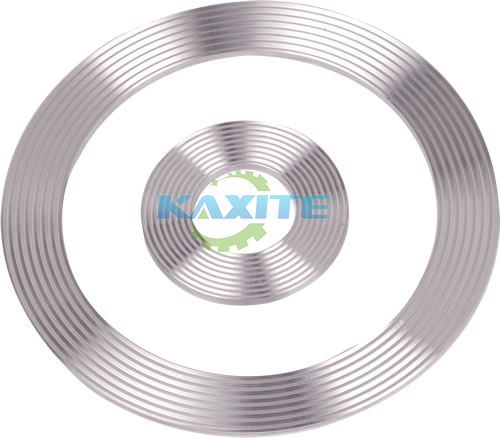

* **Concentric Serrations:** Rings are machined concentrically around the ID. Provides excellent sealing, commonly used for standard applications.
* **Spiral Serrations:** A continuous spiral groove. Can be easier to center and may offer incremental improvements in sealing under cyclic conditions.
* **Double-Serrated:** Serrations on both faces. Used for sealing between two raised face flanges.
* **Single-Serrated:** Serrations on one face only, with the opposite face flat. Typically used for sealing between a raised face and a flat-face/grooved flange.
### Installation & Maintenance Guidelines
Proper installation is critical for achieving a leak-free seal with a serrated gasket.
1. **Flange Inspection:** Ensure both flange sealing surfaces are clean, dry, and free of scratches, pits, or old gasket material. Light machining may be required to restore a smooth finish.
2. **Gasket Inspection:** Verify the Kaxite gasket material and dimensions are correct for the application. Check for any shipping damage.
3. **Alignment:** Carefully center the gasket between the flanges. Avoid dragging it across the flange faces.
4. **Bolt Lubrication:** Use a high-temperature anti-seize lubricant on bolt threads and nut bearing surfaces to ensure consistent and accurate bolt loading.
5. **Bolt Tightening:** Follow a cross-pattern (star pattern) torque sequence. Tighten in multiple incremental stages (e.g., 30%, 60%, 100% of final torque) to ensure even compression. Always refer to the specific torque values recommended for your flange class, size, and bolt material.
6. **Re-torquing:** For critical applications, a re-torque after 24-48 hours of operation (once the system has reached operating temperature and cooled) is recommended to compensate for any initial relaxation.
### Serrated Gaskets: Frequently Asked Questions (FAQ)
**Q: When should I choose a serrated gasket over a spiral wound or RTJ gasket?**
**A:** Serrated gaskets are ideal for high-pressure, high-temperature applications with raised face flanges where superior leak tightness is required. They are often more cost-effective than Ring Type Joint (RTJ) gaskets for many standard applications and can handle higher pressures and more surface imperfections than spiral wound gaskets (SWGs). If you have standard ASME B16.5 flanges and need a robust, reusable metal seal, a serrated gasket from Kaxite is an excellent choice.
**Q: Can serrated gaskets be used with soft or coated flange faces?**
**A:** Generally, no. The sealing principle relies on the serrations deforming a softer surface. They are designed to bite into the flange material (typically carbon or stainless steel). Using them on soft surfaces like aluminum or plastic, or on protective coatings, can result in over-bite, galling, or destruction of the flange face. Always ensure both flanges are of a harder material than the gasket itself for optimal performance.
**Q: How do I determine the correct serration pattern and specifications for my application?**
**A:** The selection depends on pressure, temperature, medium, flange type, and cycle frequency. Concentric serrations are a robust, general-purpose choice. Spiral serrations may be specified for certain cyclic duties. The serration depth and pitch are optimized based on flange hardness and required sealing force. Kaxite's engineering team can assist with this selection based on your specific service data to ensure optimal performance.
**Q: Are Kaxite serrated gaskets reusable?**
**A:** Yes, one of their key advantages is potential reusability. After disassembly, inspect the gasket carefully. If the serrations are still well-defined and not flattened or damaged, and there is no corrosion or cracks, the gasket can typically be reused. However, for critical service or if any doubt exists, replacement with a new Kaxite gasket is always the safest practice.
**Q: What is the difference between a serrated gasket and a ring-type joint (RTJ) gasket?**
**A:** Both are solid metal seals, but they differ in design and application. A serrated gasket seals on the raised face of standard flanges via biting serrations. An RTJ gasket is designed to fit into a machined groove (the RTJ groove) in the flanges and seals through axial compression and metal-to-metal contact at the "hubs" or "shoulders." RTJs are generally used for even higher pressures (often ASME Class 900 and above) and require specifically grooved flanges.
**Q: How do I specify and order a custom serrated gasket from Kaxite?**
**A:** Providing the following information ensures a correct and rapid quote: Flange Standard & Rating (e.g., ASME B16.5, Class 300), Nominal Pipe Size, Flange Face Type (RF, FF), Service Fluid, Operating Pressure & Temperature, Preferred Material (or corrosion requirements), and any applicable drawing or specification. Our technical sales team will then recommend the optimal serration design and provide a competitive quotation.
