Corrugated Gaskets: The High-Performance Sealing Solution

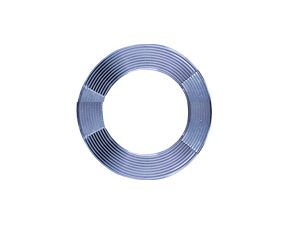

In the demanding world of industrial sealing, where pressure, temperature, and media compatibility are critical, Corrugated Gaskets stand out as a superior choice for engineers and maintenance professionals. These specialized gaskets, characterized by their distinctive wave-like pattern, offer a unique combination of flexibility, resilience, and high sealing force. At Kaxite, we have refined the engineering and manufacturing of corrugated metal gaskets to provide reliable, long-lasting seals for the most challenging applications across oil & gas, chemical processing, power generation, and aerospace industries.

The fundamental advantage of a corrugated gasket lies in its design. The corrugations create a series of concentric sealing rings. When compressed between flanges, these rings deform plastically, flowing into microscopic imperfections on the flange surfaces to create multiple, redundant seal lines. This results in an exceptionally tight barrier against leakage of fluids or gases, even under low bolt loads. Unlike flat gaskets, the corrugated design provides a "spring-back" effect, offering some compensation for thermal cycling, vibration, and pressure fluctuations that can cause other gaskets to fail.

Key Features and Benefits of Kaxite Corrugated Gaskets

Kaxite Corrugated Gaskets are engineered for performance and durability. Here are the core benefits:

• Excellent Sealing Performance: Multiple sealing lines ensure a leak-free seal at high pressures and temperatures.
• Low Seating Stress Requirement: Achieve an effective seal with lower bolt torque compared to many flat gaskets, reducing flange stress.
• Superior Creep Resistance: The metallic construction resists cold flow (creep relaxation) under sustained load and temperature, maintaining seal integrity.
• Wide Temperature and Pressure Range: Suitable for cryogenic applications up to extreme high-temperature services, depending on the base metal and filler.
• Chemical Compatibility: By selecting the appropriate metal alloy and filler material, they can handle a vast array of corrosive media.
• Reusability: In many cases, Kaxite corrugated gaskets can be reused if carefully disassembled, providing cost savings.
• Robust Construction: Resistant to blow-out under sudden pressure surges due to their metal core design.

Detailed Product Parameters and Specifications

Selecting the correct corrugated gasket requires careful consideration of its parameters. Kaxite offers a wide range of standard and custom configurations.

1. Standard Material Combinations

2. Physical Dimensions and Standards

Kaxite Corrugated Gaskets are manufactured to meet international standards and custom sizes.

3. Performance Characteristics

• Maximum Working Pressure: Varies by material and size; standard designs rated for 1500 PSI (100 BAR) to 5000+ PSI (345+ BAR).
• Leak Rate: Typically better than 1 x 10^-4 mbar·l/s (helium) when properly installed.
Compression Strength: High, with excellent recovery properties.
• Recommended Surface Finish: Flange surface finish of 125 to 250 µin (3.2 to 6.3 µm) Ra is ideal for optimal sealing.
• Gasket Stress (Seating Stress): Typically 10,000 to 30,000 PSI (70 to 200 MPa) for initial seating.

Frequently Asked Questions (FAQ) About Corrugated Gaskets

Q: What is the main difference between a Corrugated Gasket and a Spiral Wound Gasket?

A: While both are composite metal gaskets, their construction differs significantly. A spiral wound gasket is made by winding alternating layers of pre-formed metal strip and filler material (like graphite) into a V-shaped spiral. A corrugated gasket starts with a solid, flat metal core that is then formed into a concentric wave pattern; the filler material is then applied to one or both sides, often fully encapsulated by an outer metal ring. Corrugated gaskets generally require lower bolt load to seat effectively and offer more uniform compression across the flange face.

Q: Can Kaxite Corrugated Gaskets be used for heat exchanger applications?

A: Absolutely. They are an excellent choice for heat exchangers, especially shell-and-tube types. Their ability to handle thermal cycling and high temperatures makes them ideal. For such applications, materials like stainless steel or Inconel with graphite filler are common. It is crucial to specify the exact operating conditions (media, temperature cycles, pressure) to Kaxite engineers for the correct material selection.

Q: How do I determine the correct material grade for my service?

A: Material selection depends on three primary factors: the chemical composition of the media being sealed (for corrosion resistance), the continuous operating temperature, and the pressure. First, identify any corrosive elements (acids, alkalis, chlorides). Second, define the min/max temperature, including any thermal shock. Third, know the system pressure. Kaxite provides detailed chemical compatibility charts and engineering support to guide you. For example, 316SS with PTFE filler is excellent for many acids at moderate temperatures, while Inconel with graphite is chosen for high-temperature oxidizing atmospheres.

Q: Are these gaskets suitable for raised face (RF) and flat face (FF) flanges?

A: Yes, Kaxite Corrugated Gaskets are versatile. They are predominantly used on raised face flanges, where they seat inside the bolt circle. For flat face flanges, it is essential to ensure the gasket's outer diameter is correctly sized to cover the entire face up to the bolt holes, and the flange must have sufficient rigidity. An outer guide ring (also called a centering ring) is often integral to our gasket design, which aids alignment and prevents over-compression.

Q: What is the typical lifespan of a corrugated gasket in continuous service?

A: The service life is highly application-dependent. Under stable conditions within the gasket's design parameters (correct temperature, pressure, no chemical attack), a Kaxite Corrugated Gasket can last for many years, often through multiple maintenance cycles. Factors that reduce lifespan include excessive thermal cycling beyond design limits, exposure to incompatible chemicals causing corrosion, flange misalignment causing uneven loading, and improper installation (under or over-torquing).

Q: Does Kaxite offer corrugated gaskets with PTFE or other non-asbestos fillers?

A: Yes. We specialize in asbestos-free solutions. Our standard filler materials include flexible graphite (grafoil), PTFE (Teflon), mica, and ceramic fibers. Flexible graphite is our most popular filler due to its wide temperature range, chemical inertness, and excellent sealing properties. PTFE is chosen for its supreme chemical resistance to most aggressive media at lower to moderate temperatures. We can advise on the optimal filler for your specific needs.

Q: How critical is proper installation, and what are the key steps?

A: Installation is paramount to performance. Key steps include: 1) Inspection: Check flanges for cleanliness, scratches, flatness, and correct surface finish. 2) Alignment: Ensure flanges are aligned within tolerance before inserting the gasket. 3) Lubrication: Lightly lubricate bolt threads and washers. 4) Torquing: Use a calibrated torque wrench. Follow a cross-pattern bolting sequence (star pattern) in multiple incremental steps (e.g., 30%, 60%, 100% of final torque) to ensure even compression. Always refer to the specific installation guideline provided by Kaxite or the applicable engineering standard (like ASME PCC-1).

Ordering and Customization from Kaxite

Kaxite prides itself on providing not just standard inventory items but also fully customized corrugated gasket solutions. When you contact us for a quote or order, please have the following information ready to ensure accuracy and optimal performance:

• Flange Standard (e.g., ASME B16.5, DIN 2635) and Rating (Class 150, PN 40, etc.).
• Nominal Pipe Size (NPS) or exact flange dimensions: Outer Diameter, Inner Diameter, Bolt Circle Diameter.
• Detailed Service Conditions: Fluid/Medium, Operating Temperature (min/max), Operating Pressure.
• Flange Face Type: Raised Face (RF), Flat Face (FF), Ring-Type Joint (RTJ) – note: corrugated gaskets are typically for RF/FF.
• Preferred or Required Materials (Core Metal and Filler).
• Any special requirements: Non-standard thickness, with or without an outer guide ring, serrations, etc.

Our engineering team is available to review your application and recommend the most reliable and cost-effective corrugated gasket design. We utilize advanced manufacturing techniques and rigorous quality control, including material certification and dimensional inspections, to ensure every Kaxite gasket meets the highest standards of performance and safety.
