High-Quality Graphite PTFE Packing Solutions from a Leading China Manufacturer

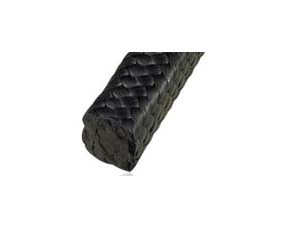

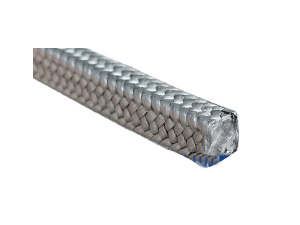

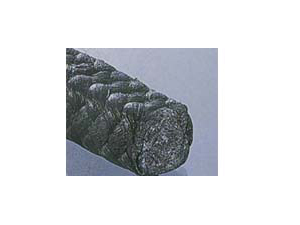

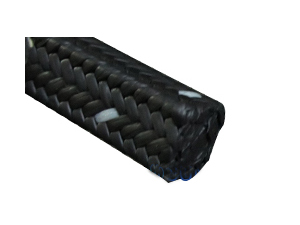

What is Graphite PTFE Packing? Advantages and Applications

Graphite PTFE Packing represents a high-performance sealing solution engineered for demanding industrial environments. This innovative material combines the superior self-lubricating properties and chemical inertness of expanded PTFE (Polytetrafluoroethylene) with the exceptional thermal conductivity and stability of high-purity graphite. The result is a versatile, braided packing that delivers outstanding leak control, extended service life, and reduced maintenance costs across a wide temperature and pressure spectrum. Unlike traditional packings, this composite material effectively handles aggressive chemicals, steam, hot oils, and acids while maintaining excellent resilience and seal integrity under dynamic or static conditions. Its unique construction minimizes shaft or stem wear, making it a cost-effective and reliable choice for rotating, reciprocating, and valve applications in industries ranging from chemical processing and pharmaceuticals to power generation and food & beverage.

Key Technical Specifications and Performance Data

The performance of Kaxite Graphite PTFE Packing is defined by a precise set of material properties and design parameters. These specifications ensure consistent, reliable sealing under predefined operational limits.

• Base Materials: Expanded PTFE filaments impregnated and interwoven with high-purity, corrosion-resistant graphite.
• Temperature Range: -100°C to +280°C (-148°F to +536°F) continuously. Short-term peaks up to 300°C (572°F) are possible.
• Pressure Range: Suitable for pressures up to 25 MPa (3600 psi) in static applications and 15 MPa (2200 psi) in dynamic/rotary services, depending on size and speed.
• pH Range: Chemically inert, performing reliably across the full pH scale of 0 to 14.
• Thermal Conductivity: Excellent heat dissipation properties due to graphite content, reducing heat buildup at the sealing interface.
• Density: Available in standard densities from 1.2 g/cm³ to 1.8 g/cm³ to balance sealing force, flexibility, and wear resistance.
• Coefficient of Friction: Extremely low, reducing power consumption and wear on equipment.

Detailed Product Parameter Tables

To facilitate proper selection, Kaxite provides detailed specifications for our standard Graphite PTFE Packing product lines. The following tables outline critical dimensional, performance, and compatibility data.

Table 1: Standard Sizes and Physical Properties

Table 2: Chemical Compatibility Guide

Table 3: Application & Service Recommendations

Frequently Asked Questions (FAQ) About Graphite PTFE Packing

Q: How does Graphite PTFE Packing differ from standard PTFE filament packing?
A: The key difference lies in the incorporation of high-purity graphite. Standard PTFE filament packing relies solely on PTFE for its chemical resistance and low friction. Kaxite Graphite PTFE Packing integrates graphite, which significantly enhances thermal conductivity, allowing heat to dissipate rapidly from the friction zone. This reduces thermal degradation of the PTFE, minimizes sticking or hardening of the packing, and extends service life, especially in high-speed or high-temperature applications. The graphite also contributes to improved lubricity and better conformability to the shaft or stem.

Q: Is this packing suitable for use in potable water or food processing equipment?
A: Yes, but with an important specification. Standard industrial-grade Graphite PTFE Packing may use processing aids not certified for food contact. Kaxite offers a specific FDA-compliant variant manufactured with materials and lubricants that meet FDA CFR 21 and EU 10/2011 regulations for incidental food contact. It is crucial to specify this food-grade option when ordering for applications in food, beverage, dairy, or pharmaceutical industries to ensure compliance with health and safety standards.

Q: What is the correct installation procedure for this type of braided packing?
A: Proper installation is critical for performance. First, ensure the stuffing box, shaft, and sleeve are clean, smooth, and free of damage. Cut packing rings precisely at a 90-degree angle using a sharp blade or a mitre box; never wrap the coil around the shaft and cut. Stagger the ring joints by 90 degrees or more on subsequent rings. Insert each ring individually, using a split installation tool to seat it firmly and evenly without twisting. For braided styles like Kaxite's, follow the manufacturer's recommended torque settings for the gland follower. Initial operation may require slight adjustments after a short run-in period as the packing conforms.

Q: Can Graphite PTFE Packing handle abrasive media or slurries?
A: While it offers excellent chemical resistance, the standard formulation is not specifically designed for highly abrasive services. In applications with abrasive particles in the fluid, the particles can become embedded in the soft PTFE/graphite matrix, leading to accelerated shaft or stem wear. For such services, Kaxite recommends considering alternative packing styles or consulting our engineering team for a modified composition that may include anti-abrasive additives, or ensuring proper flushing plans are in place to keep the sealing area clear of abrasives.

Q: How do I determine the correct size and number of packing rings for my equipment?
A: The packing size is determined by the cross-sectional measurement, which should match the radial clearance between the shaft/stem and the stuffing box bore. Measure the shaft/stem diameter and the bore diameter, subtract, divide by two. The result is the required cross-section. The number of rings is determined by the stuffing box depth. A general rule is to use a number of rings where the total compressed height is approximately 1.5 times the cross-sectional width. Kaxite provides detailed sizing charts and our technical support team can assist with specific calculations based on your equipment model and service conditions.

Q: Does this packing require a break-in or run-in period, and what does that involve?
A> Yes, a controlled break-in period is highly recommended to optimize performance and lifespan. After installation, tighten the gland nuts finger-tight only. Start the equipment and allow it to run for 5-10 minutes. There will be initial leakage to lubricate and cool the packing. Gradually tighten the gland in small increments (e.g., 1/6th of a turn) at intervals of 10-15 minutes until the leakage reduces to a slight drip or film for cooling. Overtightening during break-in generates excessive heat, leading to premature packing failure and shaft damage. The goal is a steady state with minimal, controlled leakage.

Q: What are the signs that my Graphite PTFE Packing needs to be replaced?
A> Several indicators signal the end of service life. These include a persistent, uncontrollable increase in leakage even after proper gland adjustment; excessive heat generation at the stuffing box, often indicated by steam or discoloration; a noticeable increase in power consumption or torque required to operate a valve stem; visible physical degradation of the packing, such as hardening, cracking, or excessive extrusion; and accelerated wear on the shaft or stem, which can be checked during maintenance. Proactive replacement based on operating hours or maintenance schedules is often more cost-effective than failure-based replacement.

Q: Can Kaxite Graphite PTFE Packing be used in oxygen service?
A> Extreme caution is required. While PTFE and graphite themselves are generally compatible with oxygen, the risk in high-pressure or high-flow oxygen systems is related to ignition potential from friction or adiabatic compression. The use of any packing in oxygen service must strictly adhere to the specific equipment manufacturer's guidelines and industry standards (such as ASTM G88). Kaxite can provide materials with special cleaning and processing for oxygen service upon request, but a thorough hazard and operability (HAZOP) review for the specific application is mandatory.
