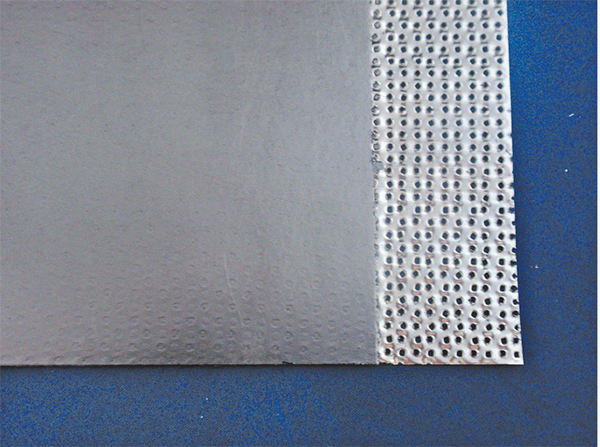

Tanged Metal Reinforced Graphite Sheet

Graphite Sheet Reinforced with tanged metal insert is made from Kaxite B201 Flexible graphite sheet through specially pressing or sticking process. The insert materials can be SS304, SS316, Nickel, etc. It used in kinds of conditions, and various gaskets. .


Send Inquiry


Description

Description
> Made for various gaskets
> Suitable for petrochemical, mining, vessels, boilers, piping and duct, pumps and valves, flanges

Prime Features
> Lone life and less maintenance
> Replacement for asbestos, new more applications are being indentified daily.
> Excellent comprehensive properties
> Good compressibility and resilience, small stress relaxation, fine compensation function
> Permanently elastic, even in hot-cold cycles over the entire temperature range, no aging, no brittleness, no hot or cold flow.

Technical Data

Item Industrial grade Unclear grade
Tolerance of density g/cm3 +/-0.06 +/-0.05
Carbon content % 98/99 99.5
Tensile strength Mpa 3~20 5~25
Compressibility % 30 30
Recovery % 15 15
Sulphur content 1200 700
Chlorine content 50 25
Stress relaxation rate % 10 10
Lgnition loss 2.0 0.5
Temperature: -240~+550 under oxidizing environment
-240~+3500 under non-oxidizing environment
PH: 0~14

Dimensions

Item Sheets
Density g/cm3 1.0
Length 500, 1000, 1500mm
Width mm 1000, 1500, 2000
Thickness mm 1.5~3.0
Special density and thickness, shape or grade available on request
