Standard Spiral Wound Gasket

Spiral Wound Gasket is one of the widely used seals, the spiral wound gasket depends on the mechanical characteristics of a formed metal strip which works as a spring, offering a better resilience under fluctuated pressure & temperature. They are widely used in the industrial field and fluid sectors.


Send Inquiry


Description

Description

KXT 600 spiral wound gasket is formed of V-shaped Metallic strip and soft non-metallic filler. Support rings, inside and Outside the spiral, improve the gasket's handing, fitting and Versatility. Depend on its excellent compression resilience, it is suitable for sealing spots where the alteration of temperature and pressure are frequent.

Type & Advantage:

R Type Spiral Wound Gasket

Item no.: KXT600-R

R Type Spiral Wound Gasket

KXT600-R Basic Type

* Basic construction type, inner and outer diameters are reinforced with several piles of metal without filler to give greater stability and better compression characteristics.

* Recommended flange tongue and groove, male to female and flat face to recess.

* General and critical duties.

IR Type Spiral Wound Gasket
Item no.: KXT600-IR

IR Type Spiral Wound Gasket

KXT600-IR Inner Ring Type

* Solid inner metal ring acts as a compression stopper. To prevent accumulation of solids, reduce turbulent flow of process fluids and minimize erosion, damages of gasket between flange bore and the inside diameter, the annular space is filled up by solid inner metal ring.

* Suitable for male and female pipe flanges.

* General duties.

CG Type Spiral Wound Gasket

Item no.: KXT600-CG

CG Type Spiral Wound Gasket

KXT600-CG Outer Ring Type

* Solid outer ring accurately locates the gasket on the flange face to give the additional radial strength to prevent the gasket blowout and acts as a compression limiter. In case of installing the outer ring, it is very easy to install the gasket to flange face because the end of outer ring will touch at bolts.

* Suitable for use with flat face and raised face flanges. For class 900 and above an internal ring is recommended.

* General and critical duties.

CGI Type Spiral Wound Gasket

Item no.: KXT600-CGI

CGI Type Spiral Wound Gasket

KXT600-CGI Inner & Outer Rings Type

* A inner ring and outer ring type gasket will give an additional compression limiting stopper for gasket inner and outer side. It will prevent the corrosions on flange face at annular space.

* Suitable for use with flat face and raised face flanges and specified for high pressure / temperature service - Class 900 and above or where corrosive or toxic media are present.

* General and critical duties.

Typical Applications

* Pipe, valve, pump, thermal exchange, condensing tower, plain hole and man hole of flange, etc.
* Petrochemical, chemical, mechanical manufacturer, power station, metallurgy, shipbuilding, medical and pharmaceutical unclear power station and navigation, etc.

Prime Features
* Gasket are made in a wide variety of sizes and shapes.
* Combinations of metal strip and filler are selected to suit the specific fluid media and operating conditions.
* Quick to install and remove
* Make gaskets suitable for high pipeline pressure on flat or raised flange faces.
* Temperatures from cryogenic up to 1000°C

Specifications & Materials
* Products are manufactured in accordance with all relevant gasket standards to suit flange designations: ASME B 16.20, ASME B 16.5, BS1560, ASME B 16.47 A (B), BS EN 1092, DIN, JIS, and NF, etc.
* Color cord as ASME B 16.20 on request.

* Provide complete range of materials spiral wound gaskets, combining the performance of the materials. Including Monel 400/ Inconel 600,625,800,825/ Hastelloy B3/ Hastelloy C276/ Titanium,etc. Range of fillers: Graphite, PTFE, Non-asbestos, Mica, etc.

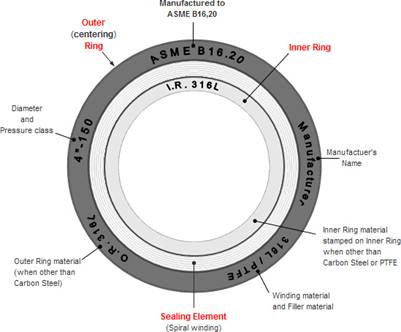

Marking & Stamping

Sprial Wound Gaskets description

Ring & Strip Materials

Minimum

Maximum

Guide Ring Color Code

Material

F

C

F

C

Abbreviation

SS304

-320

-195

1400

760

304

Yellow

SS316L

-150

-100

1400

760

316L

Green

SS347L

-150

-100

1400

760

317L

red

SS321

-320

-195

1400

760

321

Turquoise

SS347

-320

-195

1700

925

347

Blue

Carbon Steel

-40

-40

1000

540

CRS

Silver

Alloy 20

-300

-185

1400

760

A-20

Black

Hastelloy B3

-300

-185

2000

1090

HAST B

Brown

Hastelloy C276

-300

-185

2000

1090

HAST C

Beige

Incoloy 800

-150

-100

1600

870

IN 800

White

Incoloy 825

-150

-100

1600

870

IN 825

White

Inconel 600

-150

-100

2000

1090

INC 600

Gold

Inconel 625

-150

-100

2000

1090

INCO 625

Gold

Inconel X750

-150

-100

2000

1090

INX

No Color

Monel 400

-200

-130

1500

820

MON

Orange

Nickel 200

-320

-195

1400

760

NI

Red

Titanium

-320

-195

2000

1090

TI

Purple

Filler Materials

Minimum

Maximum COT

Stripe Color Code

Material

F

C

F

C

Abbreviation

Flexible Graphite

-350

-212

950

510

F.G.

Gray

PTFE

-400

-240

500

260

PTFE

White

Ceramic

-350

-212

2000

1090

CER

Light Green

Mica Graphite

-350

-212

1100

590

MICA-GRA

Pink

Spiral Wound Gaskets Package Types

To ensure that clients receive the highest quality of spiral wound gaskets, KXT Spiral Wound Gaskets are packaged with the utmost care to prevent damage during shipping to the job site, please see below:

* Between 1/2'' ~ 24'' gaskets are packaged by plastic clips each 10 pcs.

* Up to 24'' gaskets packaged by soft cotton tape each.

How to Order

1. Nominal pipe size or specific gasket dimensions

2. Pressure rating

3. Winding and filler materials

4. Centering / outer ring or inner ring material
